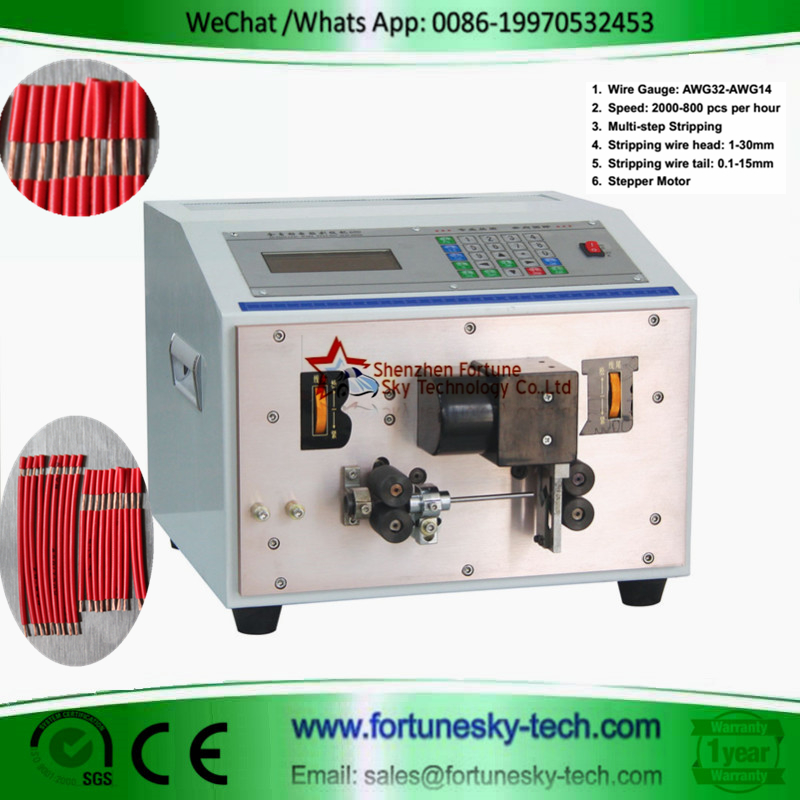

| Message: | This full or partial automatic wire stripping machine for stripping wire from 32AWG to 14AWG uses a hybrid drive microcomputer full LCD operating system, cutting, stripping, one time completion, but also the front half stripping with twisted wire, protect the integrity of the wire, special wire can instantly change the size of wire specifications.
Model No. BJ-600 BJ-650 BJ-800 BJ-880
Main Function Cut wire,both-ends stripping Cut wire,both-ends stripping,intermediate strip, (wire twisting for BJ-880)
Cutting wire core 0.1-4.0mm2
(30AWG-14AWG) 0.1-4.0mm2
(30AWG-14AWG)x2 0.1-2.0mm2
(32AWG-14AWG)x2 0.1-2.5mm2
(30AWG-14AWG)x2
Processing Speed(decided by wire material) 2000-8000 pcs/hour 4000-16000 pcs/hour 2000-8000 pcs/hour
Cutting Length 0.1-9999.9mm
No. Of Intermediate Stripping 0 13
Stripping Length Strip head: 1-30mm
Strip tail: 0.1-15mm Strip head: 1-30mm
Strip tail: 0.1-30mm Strip head: 1-50mm
Strip tail: 0.1-30mm Strip head: 1-30mm
Strip tail: 0.1-20mm
Accuracy of outlet inlet motor Mute hybrid stepping motor 0.1mm per stepping
Other functions Automatic wire inlet & outlet, timing
Driving Mode 4 wheels
Dimension(mm) 380x250x320 420x297x345 420x297x345 420x297x345
Net Weight 25 28 32 35
Blade Material Import Tungsten Steel/High speed steel
|
