| Message: | This rotary coaxial cable stripping machine is mainly used for processing coaxial cable and special single wire, using the most advanced rotating turret, to improve the accuracy and speed.
Use of specific tools and rotary axis positioning device, and can strip up to 9 layers without changing the blade corresponds to the processing of various sizes and sheath wire, and is equipped with freely set controller modular, digital display cutting diameter.

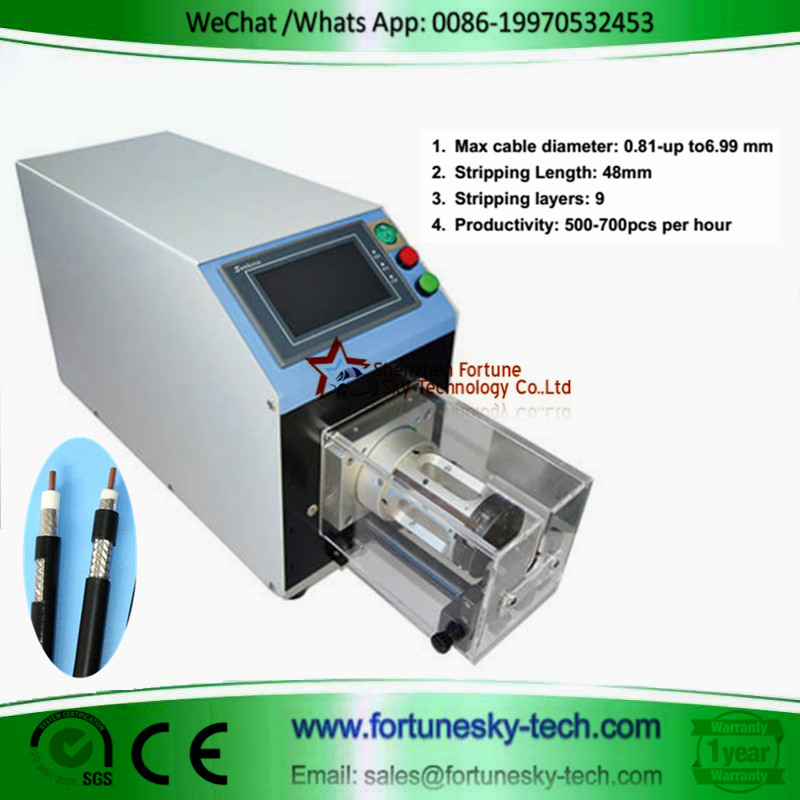

Device Name: 4806 Rotary Coaxial Cable Stripping Machine
Technical parameters:
Max cable diameter: 0.81-up to6.99 mm
Cutting Unit Depth: 0.01mm
Stripping Length: 48mm
Stripping layers: 9
Drive mode: motor / ball screw drive (imported from Japan)
Display: Touchscreen
Blade: 2, Material: tungsten steel imports Switzerland
Centering sheet: 2, Material: tungsten steel imports
Clamp means: self-aligning, motor drive, the clamping force control program
Productivity: 500-700pcs / h (depending on the cable type and length dependent)
Open: Manual / Sensor
Power: 220V / 50HZ
Power: 250W
Net Weight: 25KG
Dimensions: 525X186X278 mm
Working environment: 0-50 degrees, moderate dryness, vibration-free work surface, moderate dryness workshop |
