| Message: | Package Included:

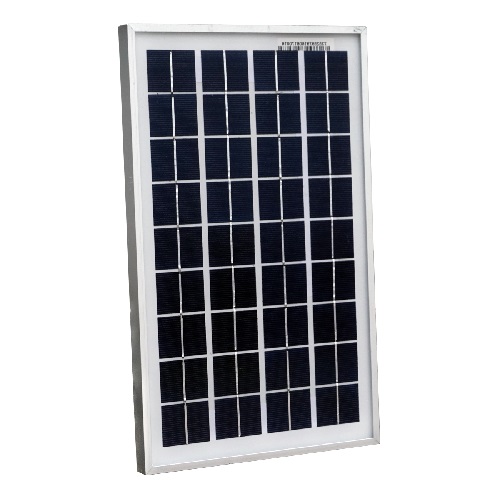

1 pcs 10W 12V Polycrystalline Solar Panel
- Widely used on small dry camp and off-grid lighting applications
- Easy Installation with pre-drilled hole.
- Waterproof IP-65 Rated Junction Box: Advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets).
- Resistance to Salt Corrosion and Humidity.
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).
- Warranty: 5-year material and workmanship warranty.
Specification
Rated power 10 W
Voc 20.6V
Vop 17.3V
Short circuit current (Isc) 0.69A
Working current (Iop) 0.58A
Output tolerance ±3%
Temperate coefficient of Isc (010+/- 0.01 )%/ ℃
Temperate coefficient of Voc - (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc -0.47%/℃
Temperature range -40℃ to +80℃
Frame Heavy duty aluminum
Kind of connection Waterproof junction box, can be customized
Guarantee of power 90% within 10 years 80 within 25 years
Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage 12V
Dimensions (L x W x H)mm 337 ×204 x 18(13.3*8.06*0.72)
Weight 0.85kgs (1.88lbs)
Quality assurance testing:
1. Thermal cycling test
2. Thermal shock test
3. Thermal/Freezing and high humidity cycling test
4. Electrical isolation test
5. Hail impact test
6. Mechanical, wind and twist loading test
7. Salt mist test
8. Light and water-exposure test
9. Moist carbon dioxide/sulphur dioxide |
