| Message: | Attractive design, Compact appearance
More details, Less dose
Pulse control, Digital radiography, Auto fluoroscopy
*High frequency high voltage x-ray generator and high precision digital pulse control
technology ensure excellent image with low skin dose.
*Digital radiography function, no more film-screen system, simplify the operate process.
*Maximum optimize the image brightness and definition depend on the kV/mA
auto trace function.
*Electric controlled collimator satisfy multi-angle and multi-directional anatomical display requirements.
Friendly user interface, convenient operate
*Human graphic LCD touch screen system
*Hand controller design support long distance exposure

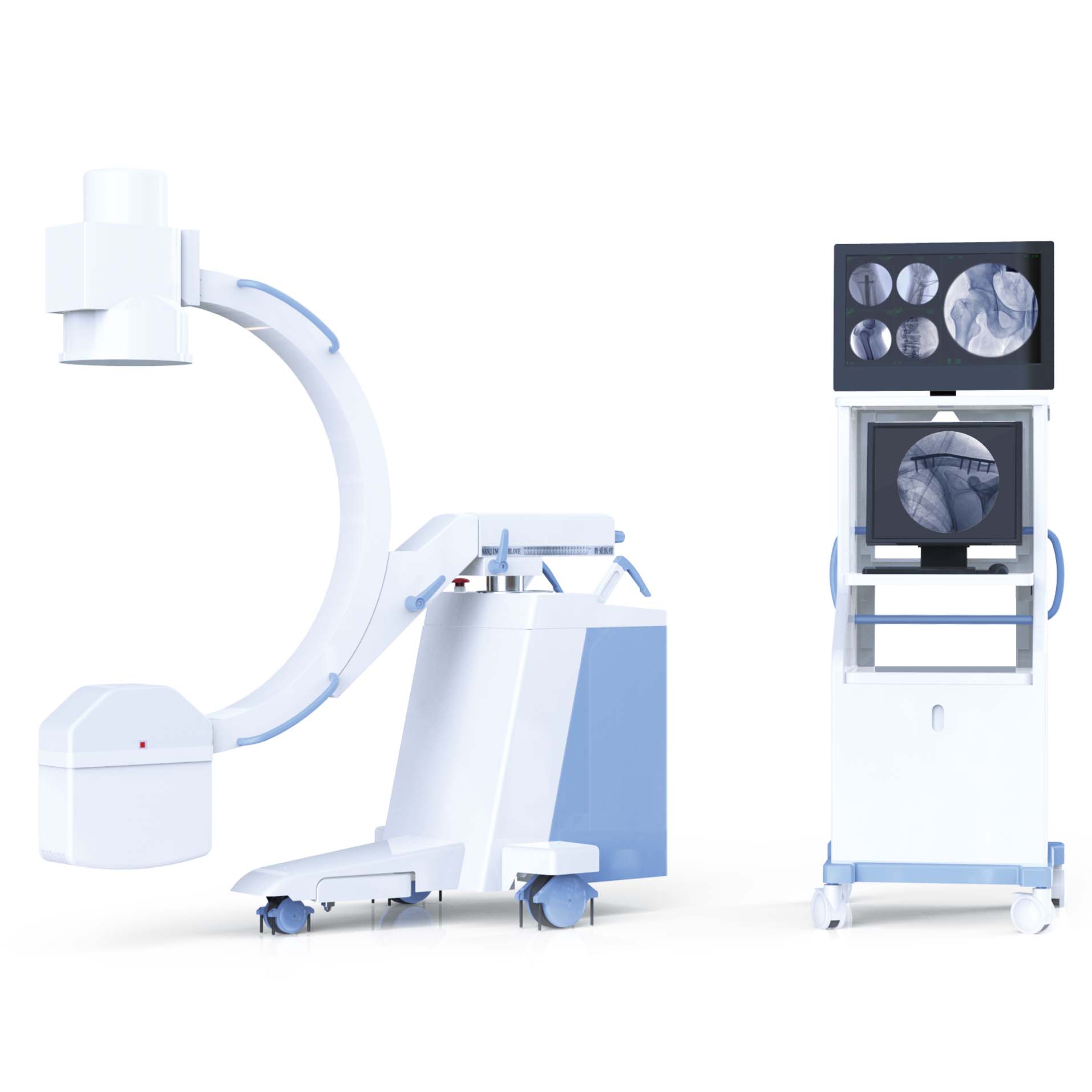

Flexible C-arm Design
All angles rotation
C-arm move around horizontal axis at +-180°
C-arm move along orbit 120°(+90°~ -30°）
C-arm move backward and forward >=200mm
C-arm vertical movement >=400mm
C-arm swing range at 30°(+-15°)
*Divertible main wheel together with direction wheels make movement more flexible.
*Electric support arm make the movement of machine more stable during moving.
Digital mega pixels image system
*High quality image intensifier.
*High definition CCD camera.
*High-resolution high-brightness monitoring system.
*Equipped with workstation to realize the functions include registration, image collection, processing,
issue the report and so on, Dicom interface to connect the hospital imaging network.
Technical Parameters |
