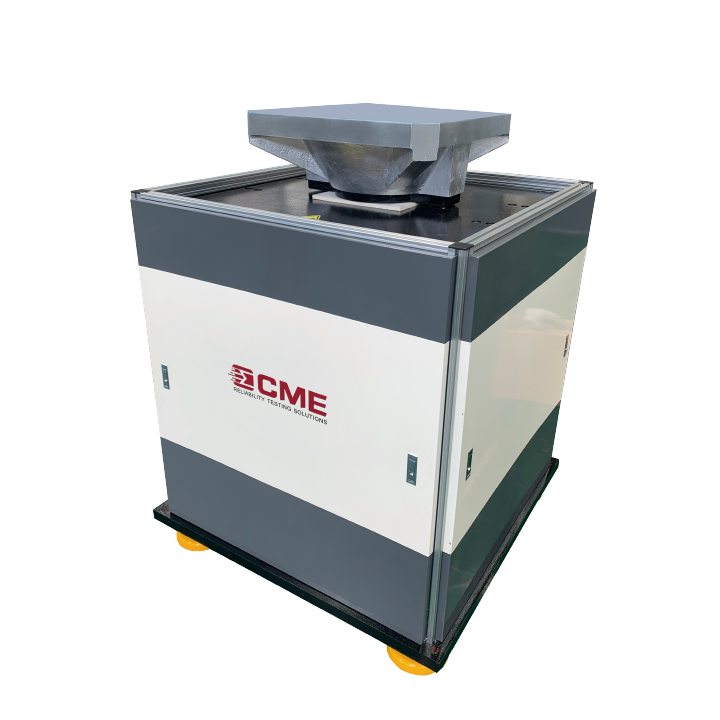

Message: | KRD13 series high acceleration shock test system is specially designed to meet the requirements of military industry and home appliances. The system adopts the principle of pneumatic energy storage expansion. By adjusting the inflation pressure, various high-level acceleration tests can be easily implemented in a short stroke.
For the classic drop test, it’s equipped with the corresponding shock amplifier to complete drop test.
Windows-based stable control system, full-automatic remote-control interface
Pneumatic cylinder driving with advantages of large driving force, short accelerating stroke, low cost and pollution free.
Automatic control of lifting height with high accuracy and good repeatability
Adopts the high strength and hardness cast aluminum table, which has high first-order resonance frequency, featured with low noise and no clutter
The most reliable double-brake system: effectively avoids secondary rebound collisions, more securely positioning the table, and more reliably guarantees the safety of the operator.
Easy installation: the device comes with a base, due to short driving stroke of the pneumatic cylinder, the footprint is small.
Technical Specifications
Model
Parameters KRD13-50 KRD13-100 KRD13-200 KRD13-500 KRD13-800 KRD13-1000
Rated Load (kg) 50 100 200 500 800 1000
Table size (mm) 300×300 500×500 800×600 800×800 1000×800 1000×1000
Peak Acc. (G)
Half-Sine 10~850 10~700 10~300 10~200
Post-Peak
Sawtooth 10~200 10~200 10~100 10~60
Trapezoid \ 15~100 15~60
Pulse Duration (ms) Half-Sine 0.8~40 1~40 1.5~40 2~40 3~40
Post-Peak
Sawtooth 3~18 6~18
Trapezoid 6~12
Bump Waveform Half Sine Waveform
Shock Peak Acceleration (G) 5~150
Shock Pulse Duration(ms) 3~30
|
