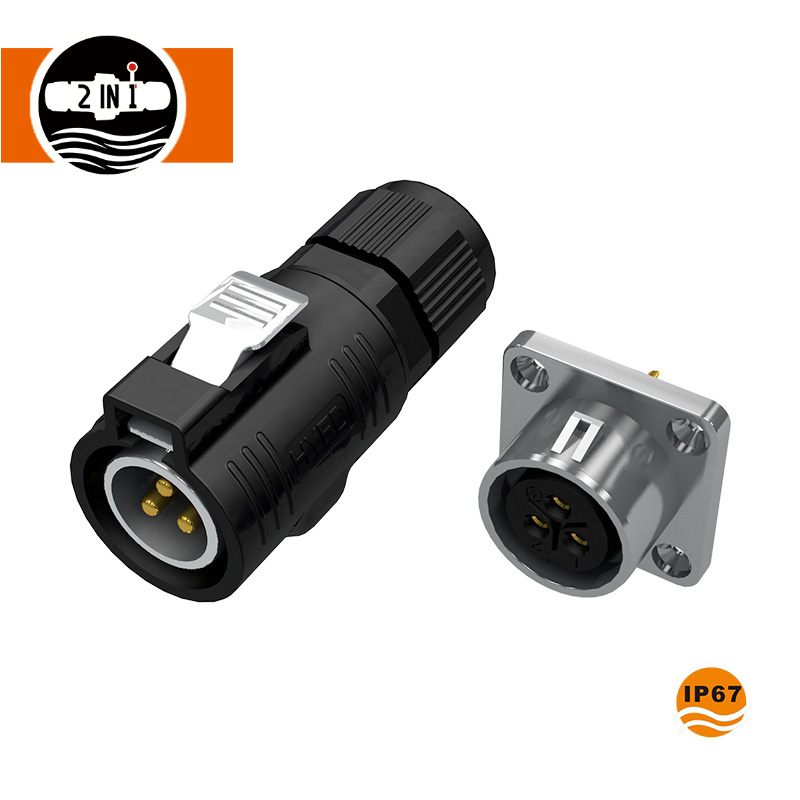

| Message: | HuaYi-FaDa Technology is one of the professionalM25 Waterproof 3 Pin Panel Mount Power Connector manufacturers and suppliers in China. We have been focusing on the research in the M25 Waterproof 3 Pin Panel Mount Power Connector field, and with our rich experience and professional technology, we have our own brand in China and have achieved good response. Our M25 Waterproof 3 Pin Panel Mount Power Connectors are made from high quality PA66 nylon material, the grade of resistance can reach 94-VO standard, the Connector is suitable for stage equipment, medical equipment, solar energy equipment and so on.
Connecting mode:Fast Locking
Protection level:IP67
Cable specification:2.5mm2 ~ 4mm2 /14~12AWG
Diameter range:Φ8mm ~Φ12mm
Contact diameter:Φ2.0×3
Current rating (A):20A
Operating voltage (AC.V.rms):500V
Withstand voltage (AC.V)1min:2500V
Contact resistance:500MΩ
Durability:≥500 mating cycles
Temperature rating:-40°C~80°C
Method of connecting cable:Solder for panel mount, screw for male connector
Prevent the combustion level:UL94-V0
|
