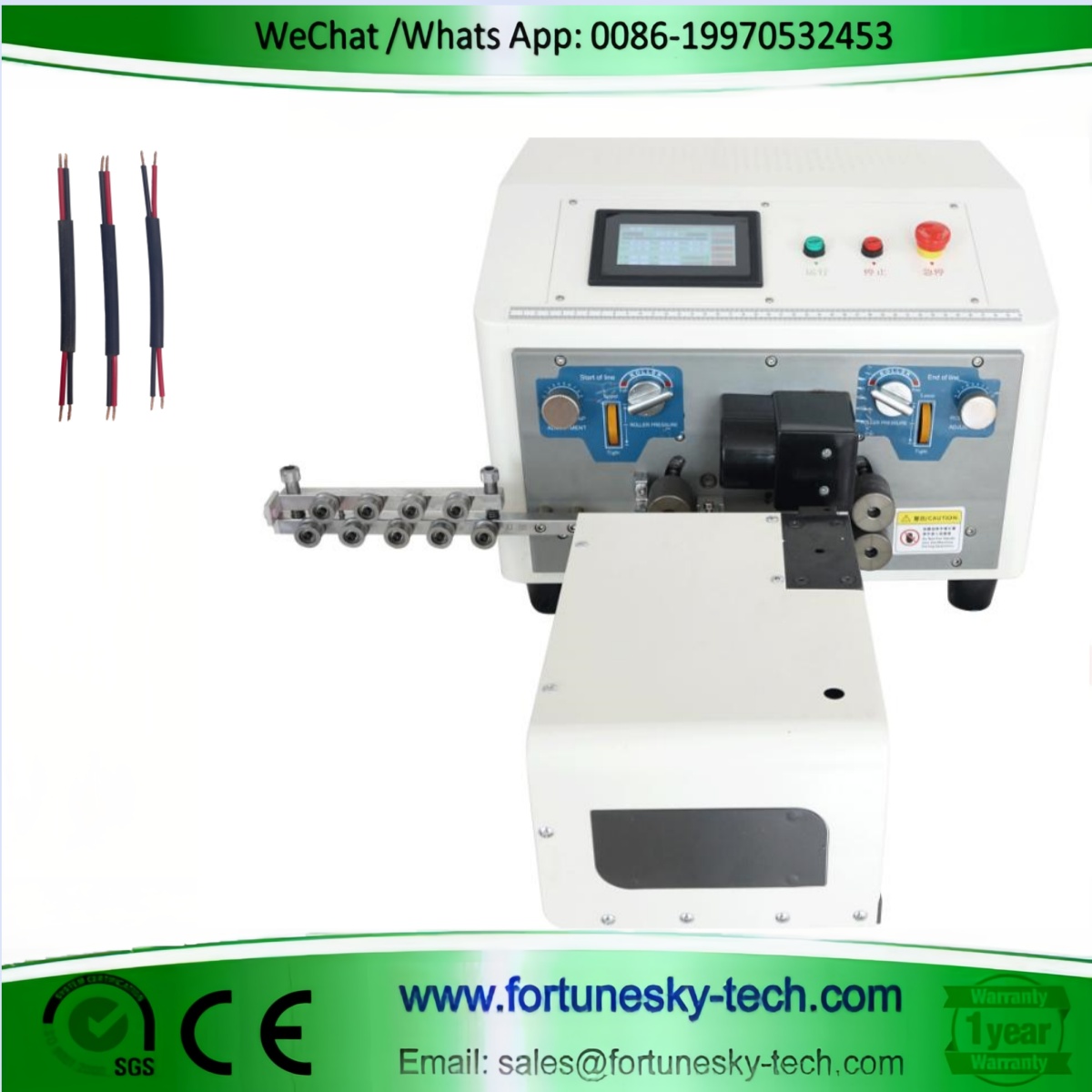

| Message: | Introducing the Advanced Wire Processing Machine with Intelligent Control
This machine takes wire processing to the next level with its cutting-edge technology. Here's what makes it stand out:
Intelligent Control for Efficiency: A state-of-the-art 32-bit control system with a user-friendly, bilingual (Chinese and English) touchscreen interface simplifies operation. Store up to 100 data sets for quick retrieval and repeat jobs effortlessly.
Exceptional Versatility: This high-performance machine tackles a wide range of wire types, including electronic wires, PVC wires, braided wires, silicone wires, high-temperature wires, Teflon wires, and insulated wires. Its adjustable settings allow you to tailor its operation to your specific needs.
Precise Processing: Featuring a silent hybrid stepping motor with 0.1mm precision and high-quality blades (Tungsten Steel or Imported High-Speed Steel), this machine delivers accurate cutting, stripping, and twisting for exceptional results.
Detailed Specifications:
Model (replace with actual model number if available)
Wire Feeding/Retrieval Motor: Silent hybrid stepping motor (0.1mm per step)
Blade Material: Tungsten Steel/Imported High-Speed Steel
Twisting Method: Motorized
Display: 4.3-inch Touchscreen
Power Supply: AC 175V-250V, 50/60Hz
Drive Mode: Four wheels
Power Consumption: 120W-220W
Cutting Length: 0.1mm - 99999.9mm
Stripping Length: Head: 0.1mm-100mm, Tail: 0.1mm-80mm
Wire Core Cutting: Up to 6 sqmm, flat wire stripping
Cutting Tolerance: Within 0.002 x L(mm)
Intermediate Stripping: 13 points
Conduit Diameter: 1.5mm-9mm
Stripping Rate: 1000-3000 pieces per hour
Wire Pressure Adjustment: Available
Pulse Equivalent: 0.05mm error within 1 meter of wire
Blade Motor Precision: 0.03mm per step
Net Weight: 48 kg
Additional Features: Automatic wire break detection and stop, automatic wire feeding and retrieval, timed startup |
