| Message: | Technical Specifications:
Model No.: CM-N03

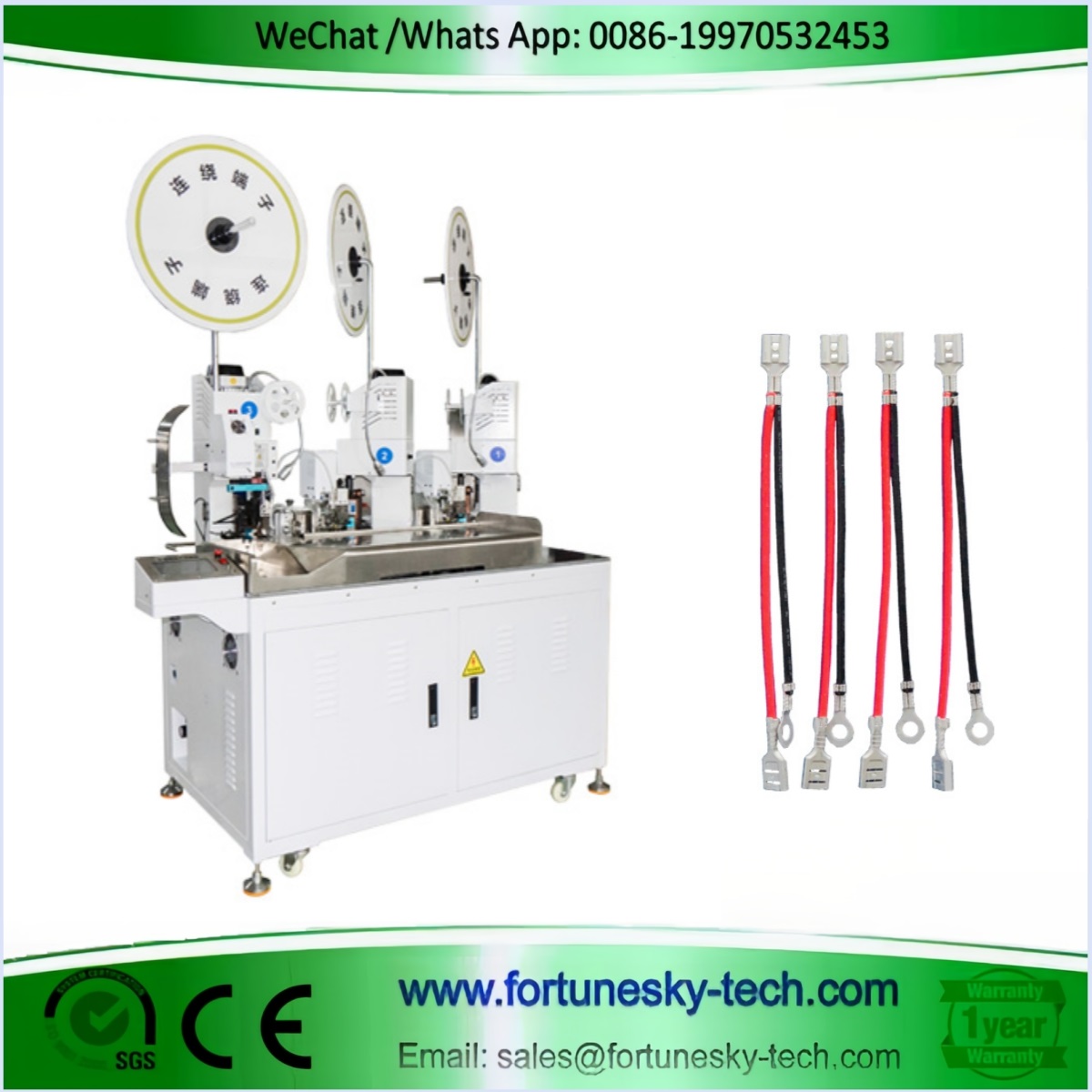

Name: Fully Automatic Double Wires Three Terminals Crimping Machine
Machine Function: Wire cutting, stripping (both-ends & single-end half), single/double wire crimping (various configurations)
Dimension (LxWxH): 1000 x 750 x 1650 mm
Net Weight: 480 Kg
Display: Color Touch LCD
Operation Method: Automatic and Manual
Cutter Adjust Method: Electric
Cutter Material: High-Speed Steel
Pneumatic Accessory: Original AIRTAC
Lead Screw Guide Rail: Taiwan HIWIN Guide Rail, TBI Lead Screw
Wire Cutting Range: 50-9999 mm (minimum limited by crimping mold)
Cutting Accuracy: +/- 0.3mm (for lengths < 100mm) or +/- 0.5mm (for lengths > 100mm)
Stripping Length:
Front: 1.00-8.00 mm (Half: 2.00-8.00 mm)
Tail: 1.00-8.00 mm (Half: 2.00-6.00 mm)
Suitable Terminals: Horizontal, Vertical, Flag
Suitable Wire Size: AWG16 to AWG28
Production Rates (reference: AWG28-AWG16, 120mm cutting length):
Three-Terminal Crimping: 2500 pcs/hour
Double Wire Equal Crimping: 3800 pcs/hour
Single Wire Both-Ends Crimping: 4200 pcs/hour
Single-End Crimping: 4500 pcs/hour
Terminal Crimping Force: 2.0 Tons (standard, customizable)
Air Pressure: 5-6 kg/cm2 (clean and dry air required)
Power: AC220V 2.5 KW
Detection Devices: Wire presence, knot detection, crimped terminal detection, air pressure detection
**The CM-N03 Fully Automatic Double Wires Three Terminals Crimping Machine is a perfect solution for businesses seeking to revolutionize their wire processing workflows. Its exceptional automation, precision, efficiency, and user-friendliness make it a valuable asset for high-volume production environments |
