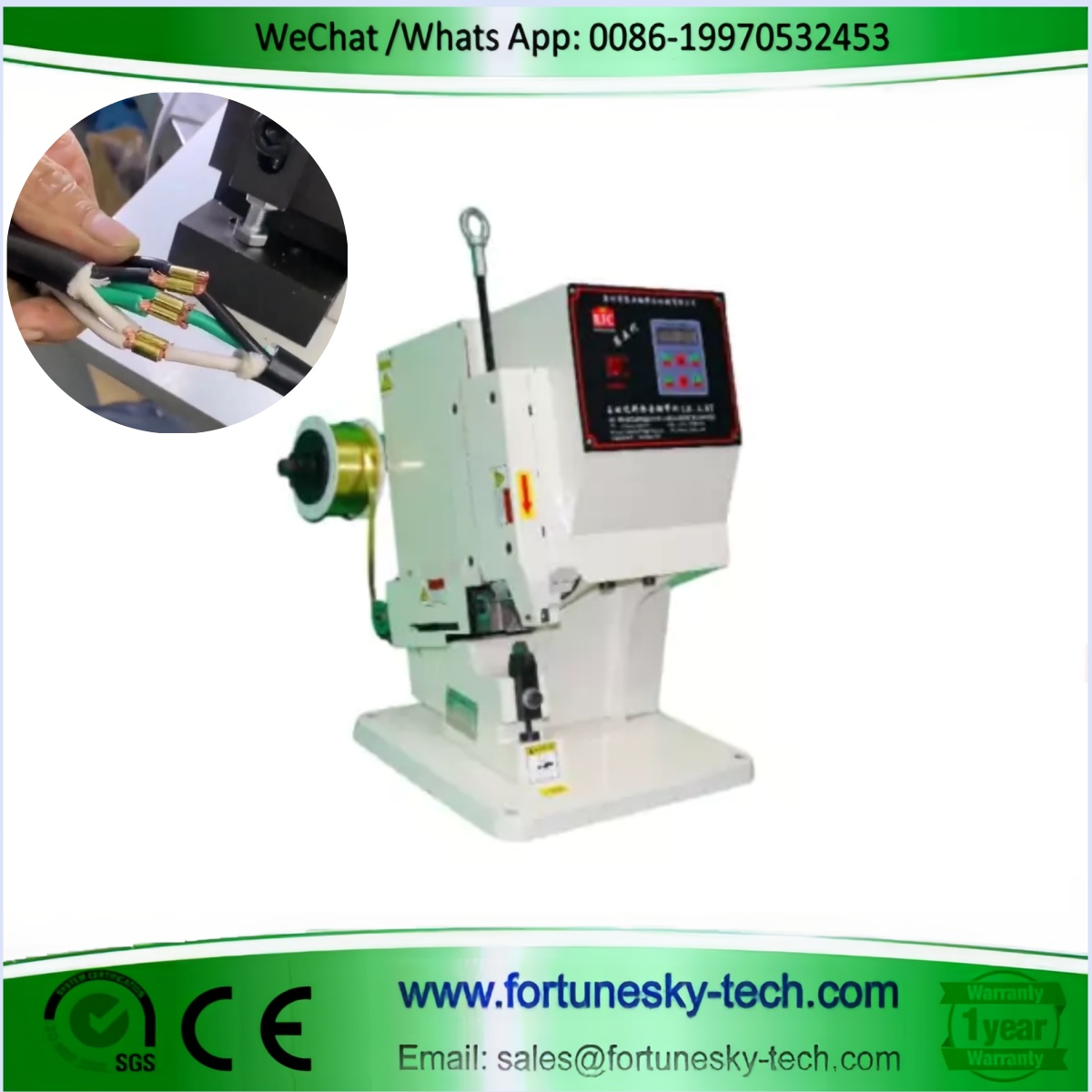

| Message: | Enhanced Safety and Quiet Operation: The LB-4.0T prioritizes safety with CE certification and quieter operation for a more comfortable work environment.
User-Friendly Design: The intuitive button screen interface simplifies operation, making it easy for users of all skill levels to achieve optimal results.
Precise Wire Handling: The unique rubber wheel feeding system ensures accurate wire movement, minimizing insulation damage and promoting consistent, high-quality connections.
Superior Riveting Strength: The innovative mold design, combined with specially processed copper belt, delivers exceptional riveting strength for long-lasting and dependable wire connections.
Environmentally Friendly: This method eliminates cold solder and air pollution, contributing to a cleaner and healthier work environment.
Faster, More Efficient Processing: The LB-4.0T integrates cutting, shaping, and crimping processes into a single operation, reducing processing time and boosting production efficiency.
Cost-Effective Solution: By utilizing continuous copper belt terminals, this machine minimizes waste and eliminates the need for purchasing separate cutting and shaping tools.
Versatility for Diverse Applications: The LB-4.0T handles a wide range of wire diameters (4.0mm-12.0mm), making it suitable for various applications including heavy gauge wires, USB cables, automotive harnesses, monitor cables, and more. Additionally, customizable non-standard molds can be used to accommodate specific needs.
Technical Specifications:
Model No.: LB-4.0T
Display Mode: Button Screen
Form Factor: 460 x 320 x 460 mm
Press Relay: 4.0 Ton
Wire Diameter: 4.0mm - 12.0mm
Working Power Supply: AC220V 50Hz
Motor Power: 1.1 kW
Limit Operating Voltage: 220V-246V
Rated Current for Normal Operation: 6A-10A
Average Power Consumption: 0.02 kW
Crimping Copper Buckle Tolerance: +/- 0.1 mm
Weight: 55 Kg
Applicable Wires: Heavy gauge wire, USB cable, Automotive medical wire harness, wiring harness, monitor cable, plane wire, train wire, etc. |
