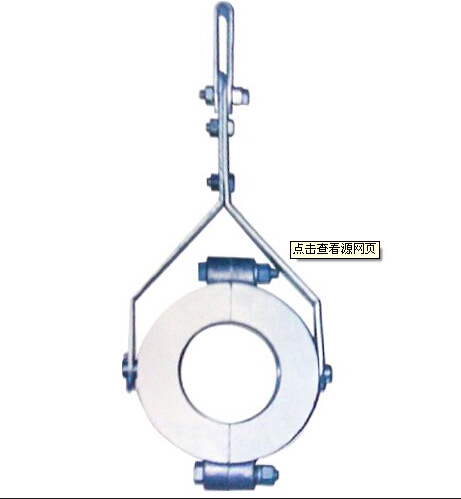

high intensity JGX-1 cable clamp

Create: 03/07/2016

Expired Date:	never
Category:	Components [Electronic]
Message:	Products adopt high strength anti-corrosion alloy materials, used for suspension cable fixed, it hangs clevis with tensioning wire connection, reasonable clamp compact structure, convenient installation, does not damage the cable. 1. The cable with rubber mat, clamp placed in the body; 2. Use bolt to fasten on the clamp body cable; 3. Place two pieces of the lower boom puckering on the lateral bolt clamp body, and should be split pin locks in the boom of the lateral, in case the boom out; 4.The boom under the above side two holes with bolt connection; 5. Place the clevis on the steel wire rope, clamp components good assembled and clevis with bolt connection. Model No. Applicable outside diameter of cable 中 H B JGX-1 φ50-φ60 6O 280 5O JGX-2 φ60-φ70 7O 290 5O JGX-3 φ70-φ80 8O 306 6O JGX-4 φ80-φ90 9O 320 6O JGX-5 φ90-φ100 100 336 60






City:	langfang Hebei[CN]
