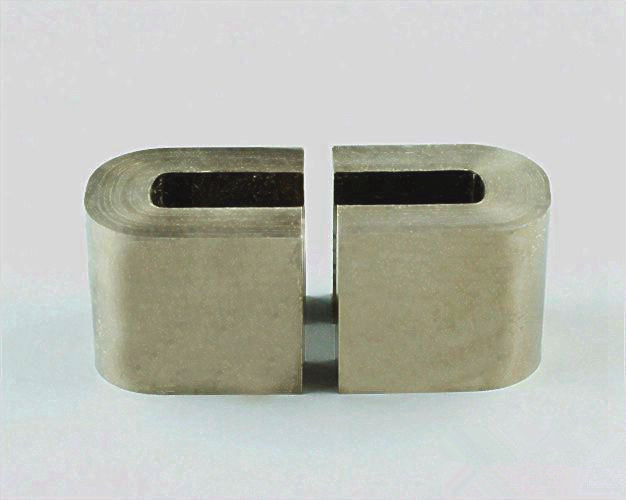

| Message: | The material of producing amorphous C-cores is 1K101. It inherits the advantages of the traditional C-cores, such as simple structure, convenient in coiling and easy to adjust inductance, etc. It has been widely used in filter inductors in solar photovoltaic industry because of its high-permeability and low iron loss in 5KHz-20KHz.
Model IW IL H OW OL
(mm) (mm) (mm) (mm) (mm)
CC-4B 11 33 15 29.0 51
CC-6.3 11 33 20 31.0 53
CC-10 13 40 20 35.0 62
CC-20 13 50 30 35.0 72
CC-40 15 56 35 41.0 82
CC-50 20 70 25 52.0 102
CC-65 20 58 45 52.0 90
CC-70 40 60 30 80.0 100
CC-80 20 70 40 52.0 102
CC-100 20 70 45 52.0 102
CC-125 25 83 35 63.0 121
CC-160 25 83 40 63.0 121
CC-180 35 65 30 85.0 115
CC-200 25 83 50 63.0 121
CC-250 25 90 60 63.0 128
CC-320 35 85 50 79.0 129
CC-340 80 104 30 132.0 156
CC-380 86 95 30 146.0 155
CC-400 35 85 65 79.0 129
CC-500 40 85 55 90.0 135
CC-650 40 115 40 120.0 195
CC-800A 40 85 85 90.0 135
CC-1000 40 105 85 106.0 171
CC-1500 64 160 80 144.0 240
We can make customized dimension and specification.
|
