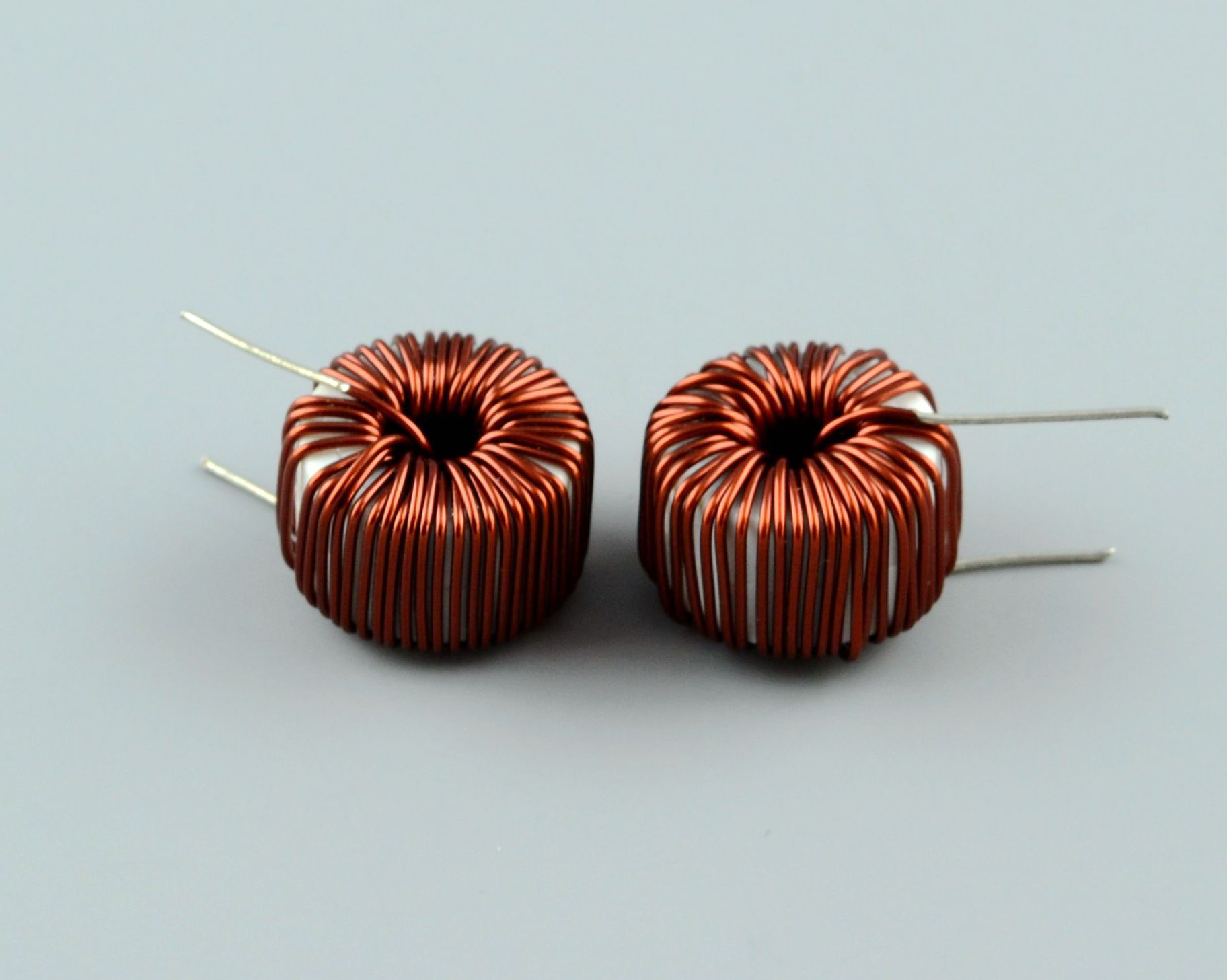

| Message: | Output filter inductance is used to filter the AC ripple after rectification.If a larger direct current flow through the inductor, the magnetic permeability and inductance change the smaller the better under the condition of DC bias magnetic. That means within a certain range of DC magnetization ,the inductor has to have a constant magnetic conductivity characteristics ( or constant inductance characteristics).In other words, the magnetic permeability ( or inductance value) can’t be less than 50% of its initial value. Nowadays, amorphous magnetic cores have been widely used in output filter inductor.
Part No Dimensions（mm）
OD ID HT
E101B03R01805 17.8 13 5
E101B03R01905 19 12 5
E101B03R02005 20 14 5
E101B03R01608 16 10 8
E101B03R01808 18 11 8
E101B03R02408 24 15 8
E101B03R01010 10 6 10
E101B03R01810 18 11 10
E101B03R02110 21 16 10
E101B03R02410 24 18 10
E101B03R02610 26 16 10
E101B03R03010 30 20 10
E101B03R04010 40 25 10
E101B03R05010 50 40 10
E101B03R05820 58 38 20
E101B03R07020 70 50 20
E101B03R10020 100 60 20
E101B03R12025 120 80 25
We can make customized dimension and specification.
|
