| Message: | The main differences between Type A leakage protector and AC type leakage protector are as follows: AC type leakage protector can only effect on AC leakage but not for pulsating DC leakage while the A type leakage protector can effect on both AC leakage and pulsating DC leakage. In addition, AC type protector can only detect leakage situation of a standard sine wave of the grid, it is suitable for using in some areas with better conditions; but in some areas where the grid condition is not good enough, we use the AC sine wave mixed into some odd wave. A type leakage protector can detect hybrid waves, particularly in the use of DC harmonic spaces, but AC type leakage protector saturate easily and no output performance.Thus, A type leakage protector is more comprehensive protection against leakage than AC type.

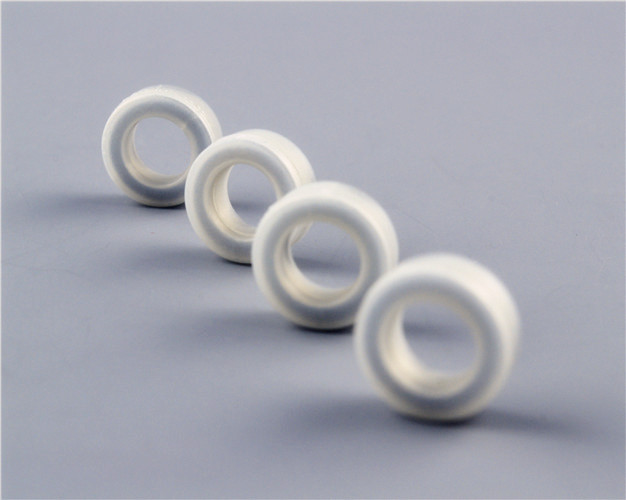

Part No Dimensions（mm） Iin(mA) Vout（mV）
OD ID HT
E107B01R01203 12.8 9.6 3 20 0.058~0.09
E107A01R01903 19 14 3.2 22 0.07~0.12
E107B01R01203-2 12.5 9.1 3.5 20 0.052~0.076
E107A01R01804 18.6 15 4.5 24 0.06~0.09
E107A01R01310 19 13 10 53 0.6~0.82
We can make customized dimension and specification
|
