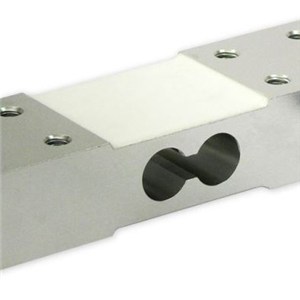

| Message: | QL-15C load cells are available in the capacities from 20kg to 300kg. Alloy aluminum construction with parallel beam type. Silicon adhesive sealed, surface anodized and anti-corrosion. Integral structure and easy installation.Suitable for electronic counting scales, platform scales,electronic balance and other electronic weighing devices.Features:Capacity ：20kg to 300kgDefend grade:IP65High accuracy. Alloy aluminum parallel beam Max. platform size:350x400mmIntegral structure,reliable performance,and easy installationElectrical connection and Dimensions:Technical Specifications Specifications:capacitykg20~300safe overload%FS120ultimate overload%FS150rated outputmV/V2.0 ± 0.2excitation voltageVdc5 ~ 15combined error%FS± 0.02zero unbalance%FS± 2non-linearity%FS± 0.02hysteresis%FS± 0.02repeatability%FS± 0.01creep%FS/30min± 0.02input resistanceΩ406 ± 10output resistanceΩ350 ± 3insulation resistanceM Ω≥ 5000 @ 50 Vdcoperating temperature range℃-20 ~ +60compensated temperature range℃-10 ~ +40temperature coefficient of SPAN%FS/10℃± 0.02temperature coefficient of ZERO%FS/10℃± 0.03 Electrical connection: Excitation+ red Excitation- black Signal+ green Signal- whiteFour-core shielded cable with polyethylene. Cable is not connected with elastomer.Cable length：3 mCable diameter ：5±0.2 mmThe cable length could be chose by customer’s application. url:http://www.qysensors.com |
