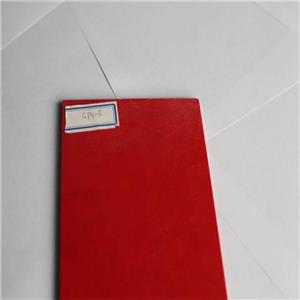

| Message: | Product DetailBasic InfoModel NO.:gpo3/upgm 203/hm 2471Application:High Arc and TrackType:Insulation SheetChemistry:Gpo3 SheetMaterial:Polyester Resin + Glass MatThermal Rating:H 180Maximum Voltage:20KV~100KVColor:Red,Brownish-Red,White,Customized ColorDimension:1020*1220 1020*2040 1220*2440 915*1830 MmThickness:0.8-75mmShape:Sheet,Tube,Profiles,Machined PartsThermal Endurance:Class H 250 DegreeFlammability:UL94 V0OEM:Gpo3 SheetProcess:Gpo3 SheetCustomize:Gpo3 SheetSample Time:Gpo3 SheetProduct Description CTI>600 94V0 Rohs gpo-3 sheet, known as UP GM 203, are manufactured using polyester resin and fiberglass mat by hot pressed. 94V0 gpo-3 sheet perform well in electrical application that require high arc and track resistance, as well as flame resistance, physical strength and high heat resistance. All our water resistant gpo-3 sheet products are UL recognized and are used extensively in the making of phase and end barriers, insulating supports, bus bar supports, mounting panels in switch gear and other types of electrical apparatus GPO-3 Features1. Flammability: UL94 V-02. CTI> 600V without tracking 3. Heat resistance Class: H 200° C to gpo-3 sheet4. Excellent arc resistance (> 180 seconds)5. High mechanical strength and good Impact resistance6. Good Processing properties, Can punching, drilling, machining, cutting7. UL certification passed (No.: E327939), ROHS once a year, have passed inspection8. Complete sort, sufficient inventory to meet the different needs of customers, also To map processingProperitiesGPO3 Application1. Phaes and end barriers 2. Insulating supports, bus bar supports3. Mounting panels in switch gears, transformers4. Antenna buses, spacers andSeparator system parts to gpo-3 sheet5. Power supply: Medium voltage inverter, High Voltage Switchgear and other high-quality primary insulation material for Columns, beams, trunking, etc. 6. Breaker: Safety shutter, security shutters, space liner, clapboard, arc interrupter compartment panels7. Electr......url:http://www.fr-4insulation.com |
