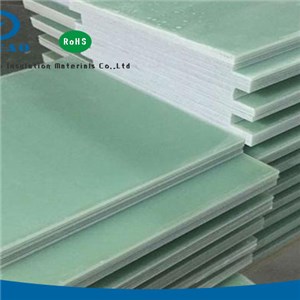

| Message: | Basic InfoModel NO.: G10/FR4Type: Insulation SheetMaterial: FiberglassMaximum Voltage: 20KV~100KVCertification: UL, ISO9001, SGS, RoHSBrand: TaiyaoThickness Range: 0.1mm~200mmPackaging Details: 500-1000kgs Per Pallet or as RequiredOrigin: ChinaApplication: Insulators, Electrical Winding Insulation, Winding Wire Coating Insulation, Electrical Base, Shell, Motor, Insulating Varnish, Switch BaseplateChemistry: Hybrid InsulationThermal Rating: B 130Classification: Hybrid Insulation MaterialsColor: Natural GreenSheet Size: 1020*1220mm; 1020*2040mmMin. Order Quantity: 500 Kgs in a LotLead Time: 7-15 Days After ConfirmedSpecification: ROHS, SGSHS Code: 39219090Product DescriptionG10/FR4 is composed of electrical alkali-free glass woven fabric base impregnated with an epoxy resin binder under pressure and heat. Applications:Widely used as insulating structural parts in electrical & mechanical equipments, such as generators, motors, transformers, terminal boards, PC boards, washers, and many others. Advantages:*High mechanical & electrical strength*Excellent rigidity & dimensional stability*Good dielectric properties*Low water absorption*Flame resistance (Type: FR-4)*Tighter thickness tolerance*Flat and straight panel*Smooth and clean surface.*Easy to machine*Temperature Index: 135 Degree CelsiusSpecifications:1) Grade: G10/FR42) Color: Natural Green; Yellow; Black3) Thickness range: 0.1mm~200mm4) Sheet size: 915*1220mm; 1020*1220mm; 1020*2040mm; 1220*2440mm;5)Min. Order Quantity: 500 kgs in a lotNEMA Grade: G-10, FR-4(IEC Grade: EPGC201, EPGC202)(DIN7735 Grade: Hgw2372, Hgw2372.1)(ISO1642 Grade: EPGC1, EPGC2) url:http://www.fr-4insulation.com |
