| Message: | Rogers PCB RT/duroid 5880 Laminates Basic information:
Dielectric constant: 2.2+-0.02
Dissipation factor: 0.0004/0.0009
Dielectric constant design: 2.2 8GHZ-40GHZ Standard thickness:
0.005" (0.127mm)
0.031" (0.787mm)
0.010" (0.254mm)
0.062" (1.575mm)
0.015" (0.381mm)
0.125" (3.175mm)
0.020" (0.508mm) Standard panel size
18" X 12" (457 X 305mm)

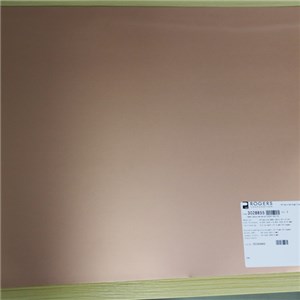

18" X 24" (457 X 610mm) Rogers RT/duroid 5880 Laminates
RT/duroid® 5880 high frequency laminates are PTFE composites reinforced with glass microfibers.The randomly oriented microfibers result in exceptional dielectric constant uniformity.
The dielectric constant of these high frequency laminates is the lowest of all products, and low dielectric loss make them well suited for high frequency/ broad band applications where dispersion and losses need to be minimized. Because of its extremely low water absorption characteristics, RT/duroid 5880 laminates are ideal for applications in high moisture environments.
RT/duroid 5880 laminates are easily cut, sheared and machined to shape, and resistant to all solvents and reagents normally used in etching printed circuits or plating edges and holes. RT/duroid 5870 and 5880 laminates have the lowest electrical loss of any reinforced PTFE material, low moisture absorption, are isotropic, and have uniform electrical properties over frequency.
Rogers RT/duroid 5880 high frequency laminates are used in:commercial airline broadband antennasmicrostrip and stripline circuitsmillimeter wave applicationsmilitary radar systemsmissile guidance systemspoint-to-point digital radio antennas url:http://www.xce-pcb.com |
