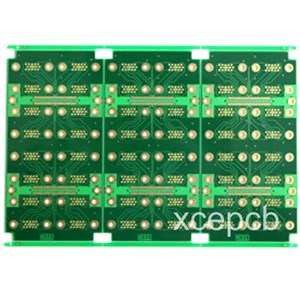

| Message: | Isola pcb Special High Frequency PCB Laminate BoardsMost popular isola model: Isola fr402,370HR,fr408,IS410Isola pcb laminateIsola laminateIsola fr406Isola 410Isola 370HRSpecification:
Material: Isola laminate
Surface finish:Immersion gold,ENIG
6 layer 1.2mm thickness
Green solder mask,white silk screen
Line space and width:10mil
Certification:ISO9001/SGS/UL
Delivery time:3-7 working days Quick detail:
Model:XCEI-1
Size: 16*10cm
Copper THK:35UM
Color: Green Application:
Automotive,Backplanes,RF / Microwave,High End Computing
Signal Integrity,Medical,Military,Mobile Devices / Wireless Handsets
Railway,Servers,Switches/Routers,Thermal Management,Wireless Infrastructure Parameter
o.ItemSpec1Layers6 layers2Max working panel area457 x 610 mm3Min board thickness4 layer: 0.40mm6 layer: 0.80mm8 layer: 1.00mm10 layer: 1.20mm4Min trace width0.10mm5Min spacing0.10mm6Min hole diameter0.20mm7Min Copper thickness in hole0.020mm8PTH size tolerance±0.05mm9NPTH size tolerance±0.025mm10Hole position tolerance±0.05mm11Dimension tolerance±0.1mm12Min solder mask dam0.08mm13Insulation resistance1E+12Ω (normal condition)14Max Board thickness/Hole size Rate'10:0115Thermal shock endurance288 3 times in 10sec16Max Board twist and wrap≤0.7%17High Vlotage endurance1.3KV/mm18Copper foil peel off endurance1.4N/mm19Hardness of resist ink≥6H20Flame resistance94V-021Material modelIsola 370HRAdvantage: Have stock of Scarcity of isola 370HR material,short time of incoming material,save costing for youPlace of Origin:ChinaBrand Name:XCECertification:CE,ROHS, FCC,ISO9001Model Number:XCEI-1Minimum Order Quantity:1pcsPrice:negotiationPackaging Details:Inner:vacuum packed bubble bag Outer:carton boxDelivery Time:5-10 daysPayment Terms:T/T,western union,paypal,L/CSupply Ability:1, 000, 000PCS/week url:http://www.xce-pcb.com |
