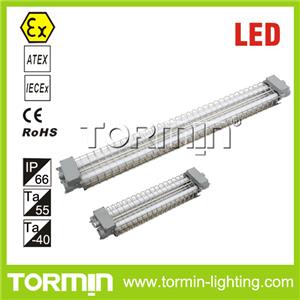

| Message: | BC5401-L20/ BC5401-L40IP Code: IP66Ex Code: Ex d e op is IIC T5 GbEx op is tb IIIC T95℃ DbAmbient temp.: -40℃ to +55℃ Standard: GB3836.1, GB3836.2 IEC60079-1:2014, MODApplication1. Explosion proof led tube can be widely used in petrochemical plants, oil platforms, oil pump housing, transit stations and other flammable and explosive places as fixed lighting.2. Gas explosive environment: Group IIA, IIB, IIC.3. Zone1, Zone2; Zone21, Zone22Characteristics1. ATEX approved light is made using a special aluminum housing, suitable for long-term highly corrosive environment of offshore platforms, chlor-alkali, hydrogen sulfide, etc.2. Derrick mounting fixture adopt high anti-corrosive aluminum and locking angle equipment, can be safely used in drilling platforms and high vibration environment.3. The anti corrosion, abrasion proof, power coated cover which is dust proof, water proof, make the lamp an excellent option for high pressure environment.4. Bracket, reflector, guard, and all exposed fasteners adopt 304 stainless steel (customizable 316), can effectively guarantee the strength and strong anti-corrosion performance of lamps.5. Terminals are provided at both ends, can be directly wired in parallel, eliminating the junction box and installation costs.6. A variety of installation as optional: ceiling, oil derrick, the side walls, curved rods, boom, etc.Technical SpecificationItemTechnical specificationRated power2*20W(T8 led tube)2*10W(T8 led tube)Input voltage range100~240VACInput frequency50Hz/ 60HzLight sourceLEDLight efficiency flux3600lm1800lmCRIRa 80Service life50000hCCT3000K/4000K/5000KScrew ThreadG3/4", NPT3/4", M25*1.5TerminalsMulti-core wire：≤2.5mm2Single-core wire：≤4mm2Dimension1390* 180* 110mm780* 180* 110mmNet weight11 Kg7.5Kg url:http://www.torminelectricals.com |
