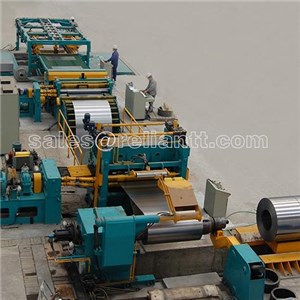

| Message: | We can Supply RTQC CNC High Speed Metal Coil to Sheet Cut to Length Line with the max. thickness is 3mm, width is 1600mm & speed is 80m/min.FeaturesThis Sheet Metal Cutting Line is used for processing the cold rolled carbon or galvanized steel coils less than 3mm thickness through decoiling, leveling, and cutting and then turned into flattened steel plated with desired length with semi-automatization. It adopts centralized control by PLC, with single, manual & automatic operation. Equips with the touch screen, the operations of charging, feeding, edge trimming, cutting numbers, cutting length & adjustment of the leveling rollers are much more convenient. Also because of the centralized control of the whole line, it can adjust the line speed in accordance for meeting different demands of variable thickness.Process FlowCoil lifter ---- hydraulic decoiler ---- snubber roller ---- pinch roll & pre-leveler ---- loop bridge ---- side guide roller ---- main leveling machine ---- encode & measuring device (with tail plate pinching) ---- shear ---- conveyor ---- hydraulic lift platform ---- stacker with blower device ---- unload cartMachine ConfigurationNo.ItemQty1Coil Saddle2 pcs2Coil Lifter1 set3Hydraulic decoiler1 set4Snubber Roller1 set5Pinch Roll & Leveler1 set6Loop bridge NO.11 set7Side Guide Roller1 set8Pinch Roll+ Precision Leveler1 set9Shear1 set10Conveyor1 set11Pneumatic Stacker1 set12X-Lifting Platform1 set13Unload Cart2 sets14Hydraulic + Pneumatic System1 set15Electric System1 setTechnical ParameterMaterialCold rolled steel coil ; Galvanized steel coilPre-paint steel coil; Stainless steel CoilThickness0.3-3.0mmWidth1000 / 1250 / 1300 / 1500 / 1600 / 2000mmWeight10 / 15 / 20 / 25 TSpeed0~80m/min ; 0~50m/min ; 0~24m/minPhotos for ReferenceHydraulic DecoilerLeveling MachineShearConveyorStacker url:http://www.tubemills-reliantt.com |
