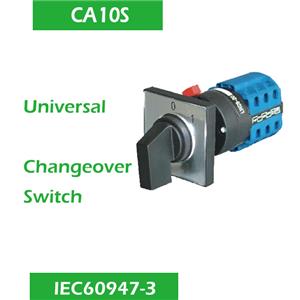

| Message: | Universal Changeover Switch Function CA10S built-in lock type switches are mainly used to cut off power by built-in lock,make the switch in the "OFF"("0") position to prevent unauthorized operation .CA10S universal changeover switch comply with GB14048.3 and IEC60947-3Technical Parameter Model NameCA10S Universal changeover switchStandardIEC60947-3 GB14048.3Rated insulation voltage(Ui)690VRated operational voltage(Ue)440Conventional thermal current(Ith)20 25 32 63ARated operational current(Ie)20 25 32 63 15 22 30 57APosition0 1 ON OFFClassifications ●Classified by utilization,control and load switch,motor switch,control switch●Classified by operation limited movement spring return,limited movement with spring return●Classified by contact system switch with limited movement has 1-12poles(63A only have 8poles), switch with spring return has 1~3poles,motor control switch has 1-6poles●Classified by rotation angle: 30°45°60°90°etc●Classified by panel square panel,rectangular panel, circular panel (only 20A)●Classified by handle R type, I type, F type, B type, S type, L type, P type, K type.Applicable Working Ambient temperature-5~+40℃, the average value cannot exceed to +35℃ within 24hAltitude≤2,000mRelative humidity≤95%Pollution levelII.Installation locationMount on the place where has no obvious vibration or impact url:http://www.mcbcircuitbreaker.com |
