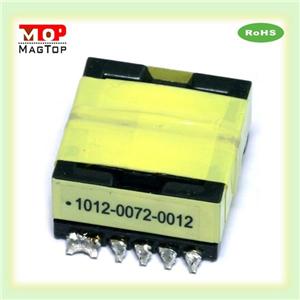

| Message: | DIMENSIONS: (UNIT: mm)ELETCRONICAL CHARACTERISTICS:1.Inductance (N1) :6.0 uH +/-10%@ 1.0 KHz, 1.0 Vrms2.Leakage Inductance (N1) :3. Turns Ratio :1,2,3~4,5,6 : 7~8 : 9~10 : 11~12= 5 : 10 : 10 : 10 ±3%4.Insulation Strength :500VAC 1.0min 5mA@ N1 to Others WindingWINDING STRUCTURE:WINDSFWIRETURNSTAPEREMARKN1-11,25,6∮0.25mm*11 2UEW52EvenlyN41112∮0.25mm*5 2UEW102EvenlyN3910∮0.25mm*2 2UEW102Evenly DiffuseN278∮0.25mm*2 2UEW103Evenly DiffuseN1-234∮0.25mm*11 2UEW53EvenlyMATERIAL LIST:No.DESCRIPTIONSMATERIALSMANUFACTURE1BOBBINSMD-EFD-25 6+6PINS S-2501-1PIN SHINE2COREEFD25 TP4TDG3WIRE2UEW 0.25mmJUNG SHING4TAPEPOLYESTER TAPE 9.0mmCHUN YIPOLYESTER TAPE 17.5mmCHUN YI5VARNISHAC-43CHANG XIAN6SOLDER99.3Sn/0.7CuTHOUSANDREMARKS:1.FIXED THE CORES WITH TAPE.2.MARKING THE CUSTOMER PRAT NUMBER ON UNIT.3.DIP THE UNIT INTO THE VARNISH. url:http://www.transformers-china.com |
