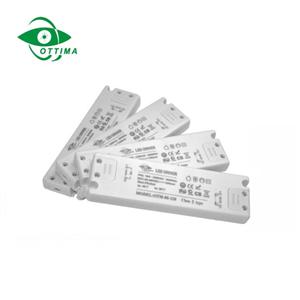

| Message: | SpecificationsMODEL OTM-SS20 OUTPUT
DC VOLTAGE
12V
RATED CURRENT
1.67A
CURRENT RANGE
0～1.67A
RATED POWER
20W
RIPPLE&NOISE(max)
0.6
EFFICIENCY(Typ.)
>85%
AC CURRENT(Typ.)
0.33A/220VAC PROTECTION
Short circuit
Protection type:Hiccpe mode,Website:http://www.ottima-tech.com,recovers automatically after condition is removed
Overload
100-120% ENVIRONMENT
WORKING TEMP.
-10~+40℃ (Refer to output load derating curve)
STORAGE TEMP
-40~+80℃ SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:3.75KVAC
EMC Test Standards
EN55015;EN61000-3-2;EN61000-3-3
EN61547 NOTE
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallelcapacitor.3.Tolerance:includes set up tolerance,line regulation and load regulation. Feautures
Stable Quality, Long Lifespan.
Low ripple and noise
EMC + Safety LaboratoryApplicationShipping and PackingFAQQ1: Are you a manufacturer or a trade company?
A1: We are a manufacturer, we have our own factory, we can guarantee the delivery and quality of our products.Q2: How about the discount ?
A2: We will give our customers best price according to the quantity of the order.Q3: What’s your price terms?
A3: FOB, CNF, CIF according to your requirements.Certificates |
