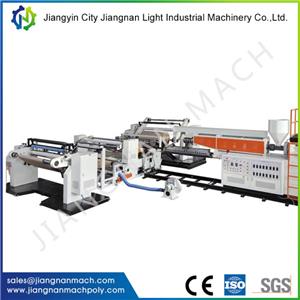

| Message: | Brief IntroductionJLM90-1600 model coating and laminating machine adopts electric,Website:http://www.jiangnanmachpoly.com, pneumatic and micro system and PLC control system.used for EPE Rolls and pe and BOPP film rolls laminating by extruding T-die melting PE resin. It include:1. Unwinding system: 360° turnover pneumatic rollers (change web no reduce speed).2. cutting & connection system: Automatic mechanical knife for cutting web and continue another (ensure no change speed).3. Extruder & T-die: automatic move extruder and full closed T-die.4. Laminating system & second unwinding system.5. Online Rectify(EPC) and trimming system (inverter motor control).6. Rewinding system: 360 °turnover pneumatic rollers (change web no reduce speed).7. Others: PLC System (screen touch), automatic accounting meter. Main Technical Parameters1. Applicability：coating 140gsm～350gsm roll base non woven and fabric. Second unwinding for BOPP,PET roll2. Coating materials: PE, PP, EAA, EVA and so on.3. Coating width: 800~1600mm.4. Coating thickness: 0.010～0.12mm (single layer).5. Evenness degree of coating: error±5%.6. Strength of peel off: 3-5N/30MM (according to the actual coating material).7. Max extruding capacity: 180kg/h.8. Machine design speed: 0-120m/min.Machinery details pic |
