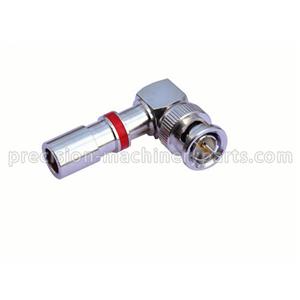

| Message: | SpecificationsTypeBNC connectorIssue No.2Date of Issue1-1-2018Page1ApplicationBNC series are one kind of cards of thing the mouth join the radio frequency coaxial connection device. It joins rapidly, keeps in touch with the characteristic such as being reliable, apply to the radio equipment and electron tube instrument field and join the coaxial cable of the radio frequency extensively. Material & PlatingItemPartMaterialPlatingRemark1ShellZinc / BrassNickel 2BodyBrassNickel 3Center contactsBeryllium copperGold 4InsulatorPTFE / ABSNatural 5FerruleCopper alloyNickel 6GasketIronNatural 7WasherSilicone or RubberRed 8SpringSteelNickel Performance:Impedance50 Ω nominal Or 75 Ω nominalFrequency Range0-4 GHz with low reflectionVoltage Rating500 volts peakDielectric Withstanding Voltage1,500 volts rmsStraight connectors1.3 max 0-4 GHzRight angle connector1.35 max 0-4 GHz Contact resistanceCenter contact≤1.5 mΩ;Outer contact≤1.0 mΩContact resistance≥5,000 MΩBraid to Body0.1 milliohm RF Leakage-55 dB min at 3 GHz Insertion Loss0.2 dB min at 3 GHz url:http://www.precision-machineryparts.com |
