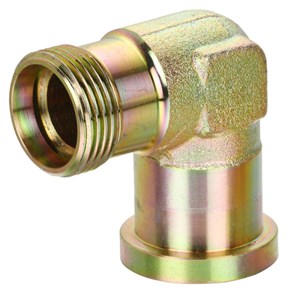

| Message: | Hydraulic tube fittings and adapters are a reliable leak-free, metal to metal connections.
It is often found in hydraulic tubing system, hydraulic steel tube is made of cold drawn, and annealed seamless low carbon steel, pressure tubing for use as hydraulic line.
JIayuan offer different types of hydraulic tube fittings, to connect different flare tubings as follows:
Flared tube end with 45° SAE style, 37° AN style and 37° JIC style Flare tube fittings.
Face Seal tube end with copper brazed weld-on tube sleeve or flat face by cold metal working.
Flareless tube end with cutting ring bite in tube to tube connectors..
to match with tube connector as follows:
SAE tube fittings, An tube fittings, JIC tube fittings.
ORFS tube fittings.
Metric tube fittings
From hydraulic tube end to port connections as follows:
Tube to SAE flange port
Tube to SAE ORB J1926-1 port
Tube to BSPP DIN 3852-2 port
Tube to Metric DIN 3852-1 port
Tube to Metric ISO 6149-1 port
Tube to BSP threadJIS B2351 or BS 5380 port
Tube to NPTF SAE J476, ANSI B1.20.1.
Tube to BSPT BS201.
If you don’t find your product, please feel free to contact me. email jyray@72338.com url:https://www.jiayuanfitting.com |
