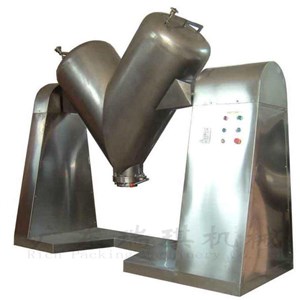

| Message: | VH Type High Efficiency Mixer Machine Introduction This machine is suitable for mixing dry powder material and granular materials in pharmacy, chemical industry, food, fodder, pottery, metallurgy, etc.Main Features 1.This machine is composed of tow asymmetric cylinder, materials will do vertical and horizontal direction flowing, the degree of homogeneity can achieve above 99%.2.It adopts manual feeding materials and full-enclosed disc valve materials discharge, which do not product powder. 3.There is no mechanical compression and strong friction, so it can maintain the intact of granular materials.3.The mixing barrel is made of stainless steel, which do not pollute the materials.4.In addition, this machine is equipped with timing device that can control the mixing time.5.It can adapt manual or vacuum feeder machine for feeding, the discharge adapts disk valves. Main Technical Parameters ModelVH0.1VH0.2VH0.3VH0.5VH1.0VH1.5VH2.0VH2.5VH3.0Total volume0.1m30.2m30.3m30.5m31.0m31.5m32.0m32.5m33.0m3Loading coefficient0.40.40.40.40.40.40.40.40.4Maximum loading50kg100kg150kg250kg500kg750kg1000kg1250kg1500kgTube diameterΦ350mmφ450mmφ500mmφ600mmφ800mmφ900mmφ1000mmφ1100mmφ1200mmFeed inlet diameterφ250mmφ300mmφ300mmφ330mmφ400mmφ400mmφ400mmφ400mmφ400mmOutlet diameterφ80mmφ100mmφ100mmΦ200mmΦ200mmφ200mmφ200mmφ200mmφ200mmCylinder rotating speed15r/min15r/min15r/min13r/min10r/min10r/min10r/min8r/min8r/minPower1.1kW1.5kW1.5kW1.5kW3.0kW3.0kW5.5kW7.5kW7.5kWPower Supply380V/50HzDimensions1900*800*1190mm2010*850*1440mm2220*900*1470mm2400*950*2480mm2800*1000*2880mm3000*1100*3110mm3200*1200*3350mm3400*1300*3800mm3600*1400*3850mmWeight210kg340kg500kg580kg900kg url:http://www.richpacking888.com |
