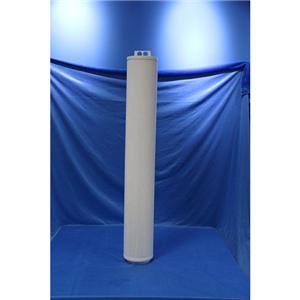

| Message: | The Tanvi high flow filter cartridges are plus large diameter pleated cartridge ,Website:http://www.pleatedfiltercartridge.com,significantly reducing the number of cartridges required as well as the housing size.The filter cartridge has flow capacity equal to 10 standard 40 inch long cartridges that would reduce upfront capital costs .Features and Benefits ●High flow capacity means fewer cartridges and less time to change●High flow capacity allows smaller housings●Built in handle makes change fast, easy and safe●O-ring seal assures filtration integrity●High surface area pleated design provides low pressure drop and long service life●Horizontal and vertical housings available for flow rates up to 3325gpm●Reduces process interruptionsSpecification Micron rating1, 5, 10, 15, 20, 40, 70, 100μmDimensionOutside diameter6"(152mm)Inside diameter3.5"(89mm)Length20", 40", 60"Max. Operating temperatureGlass fibers membrane121℃PP microfiber82℃Max. Operating pressure0.24Bar@121℃0.24Bar@82℃Surface area24 ft2. (2.2 m2) per 20" element49 f 2. (4.6 m2) per 40" element73 ft2. (6.8 m2) per 60" elementMaximum flow rates20" element up to 40 m3/hr40" element up to 70 m3/hr60"element up to 70 m3/hrO-Rings materialEPDMTypical Applications◆ Potable Water ◆ Vegetable Oil ◆ Waste water ◆ Lubricants◆ Food and Beverage ◆ Coolants |
