| Message: | 1.Products introduction

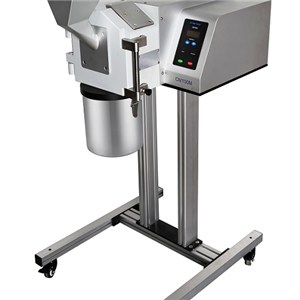

Cutting Mills CM100M is the ideal choice for comminution of soft to medium-hard, brittle, fibrous, tough or temperature-sensitive materials as well as for preparation of heterogeneous mixtures. The samples are comminuted by cutting and shearing forces, and the selected sieve cassette determines the final fineness.
2.Application
It is suitable for various soft, tough, fibrous and hard dry samples. It can be used for batch processing and continuous coarse crushing and fine crushing.(animal feed, bones, cables, cardboard, electronic components, feed pellets, foils, food, leather, lignite, material mixtures, non-ferrous metals, paper, pharmaceutical products, plant materials, plastic toys, plastics, polymers, refuse derived fuels, resins, rubber, spices, straw, textiles, waste, wood).
3.Products advantages
●powerful size reduction with 1.5kw motor drive.
●optimum cutting effects thanks to double acting cutting bars
●quick and easy cleaning due to fold-back hopper, smooth surfaces and push-fit rotor
●The final fineness are decided by the bottom sieves with different sizes from 0.2 - 20 mm as option.
●wide range of accessories including various hoppers, collection systems, rotors and sieves.
4.Technical data
*Feed size down to 25mm
*Final fineness down to100μm
Speed
500-4000rpm,continuously adjustable
Handling capacity
≥30kg/h
Peripheral speed
22m/s
Sieves
0.20,0.25,0.50,1.00,2.00,3.00,4.00,6.00,8.00,10.00mm
Collector
5 L/30L
Grinding chamber material
tungsten carbide\zirconium oxide\stainless steel of heavy-metal-free,hardened steel
Power rate
1.5KW
Power supply
220V，50Hz
Instrument size (W*D*H)
590*705*1400mm（M1）590*705*1230mm（M2/M3）
Package size (W*D*H)
1300*900*700mm
Weight
120Kg
supply220V,50Hz url:http://www.powteq.net |
