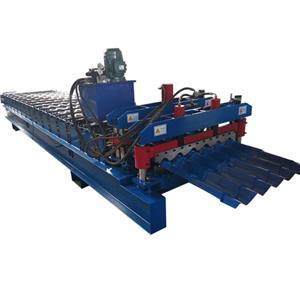

| Message: | This machine can produce glazed roof tiles. Our roof tile Making Machine (except wearing parts) come with 24 months warranty.
Machine dimension 7500*1450*1600mm
Total weight 5200kgs
Forming steps 15rows
Forming speed 1.5-3.0m/min
Hydraulic station power 4kw
Diameter of shaft 70mm
Hydraulic pressure 18-20 MPa
Electric condition 380V/3Phase/50HZ
Suitable to process Color steel plate(G300~G450 )
Manual uncoiler max capacity 5000kgs
Control system PLC
Raw material thickness 0.3-0.8mm
Effective width 925mm
Material width 1220mm
Main motor 5.5Kw
Material of the cutting blade Cr 12 quenched treatment 58℃-62℃
Main Shaft Material 45# steel with finish turning
Roller materials 45# Forging Steel with Chromium Plate
Machine Under Frame 350 H beams
