| Message: | Brief introduction:

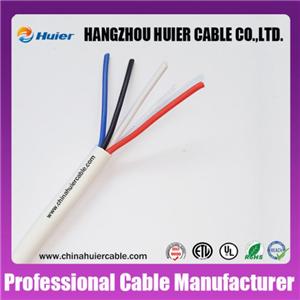

4 Cores Security Cable, insulated Conductor, Stranded Pure Copper or CCA wires, with Gauge from 14AWG to 22AWG, 4 cores, without any PET or AL shield.
Specifications of 4 Core:
# of
Cores
Center Conductor
Dielectric
Jacket
Material
Strands
Material
Nom.Dia.
Material
Nom.Dia.
4
Bare Copper /
Tinned Copper /
Copper Clad Al
7*0.25mm
PVC
1.1mm
PVC/LSZH
3.9mm
Proper cable selection is critical to effective system performance. With the different cable constructions, we have more than 50 variations of different security cables for your choice.
more types of Unshielded Security Cables for your choice:
Cores
Conductor
Dielectric
Jacket
Material
Strands
Material
Nom.Dia.
Material
Nom.Dia.
2
BC/TC/CCA
7*0.25mm
PVC
1.1mm
PVC/LSZH
3.3mm
6
BC/TC/CCA
7*0.25mm
PVC
1.1mm
PVC/LSZH
4.3mm
8
BC/TC/CCA
7*0.25mm
PVC
1.1mm
PVC/LSZH
4.7mm
10
BC/TC/CCA
7*0.25mm
PVC
1.1mm
PVC/LSZH
5.1mm
12
BC/TC/CCA
7*0.25mm
PVC
1.1mm
PVC/LSZH
5.7mm
Cable can be OEM.
Applications:
Home Burglar Alarm & Security Systems, Public Security System.
How to choose the right security Cable?
Home security systems are becoming more prevalent in residential areas, but it can be complicated to know and understand all the components necessary to purchase for a security system. However, security systems can also be used in commercial areas, such as small businesses, public spaces, school environments, or even areas of transportation. At HUIER, we can provide you with more than 50 kinds of security & alarm cables to fit your different security system set-up.
There are various components of a security alarm system, so it is important that you have the right security alarm cable for each section. First, a wired security system has a keypad, which is what ......url:http://www.chinahuiercable.com |
