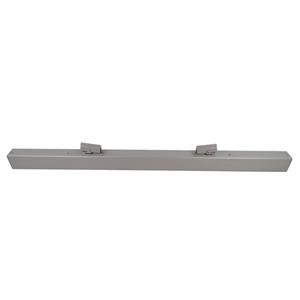

| Message: | DescriptionThis product is designed for wide window application when 2 catches are required on the same ventilator. The micro-processor based speed control mechanism delivers the perfect speed synchronization of two motors regardless of the vent load. This enhances the useful life of the ventilators from the immature weather leaks and failure.Features· Speed synchronization to deliver stress free installation to window structure.· Meets B300 (300°C/30 Mins) EN 12101-2 annex G.· Meets EN12101-2 annex C cycling test for 10,000 cycles.· Standard feature to include Soft opening, water seal relief and finger protection for safety.· High speed version available to open 900mm in 60 seconds.· Intelligent version available for network control installation.TechnicalVoltage：24 Vdc +/- 15%Finishes:Power coated RAL 9006Stroke：100-900mmCable:1 meter silicon cablePush/Pull forces：800N/800NIngress Protection:IP 32Clamping forces：>3,500N (based on manufacturers bracket)Endurance:10,000 cycles 30% duty cycleCurrent at nominal load:2.0A @ 24Vdc*Weight :4.5 kg (500mm stroke)No load current：0.4A/0.8A (high speed version)Synchronization:YesSpeed：9 -15 mm/s, Ampere: 4A@24VdcHousing：Extruded Aluminum url:http://www.autofacade.com |
