Message: | Introduction

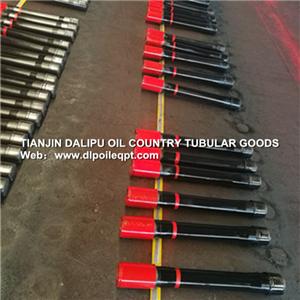

Casing pup joint is a type of steel pipe that is typically used to Oil well protection tubing.Casing and tubing strings are the main parts of the well construction. All wells drilled for the purpose of oil or gas production (or injecting materials into underground formations) must be cased with material with sufficient strength and functionality.
Specification
Size 4-1/2"~20"
Material Grade J55\K55\N80\L80\P110\Q125\L80-3Cr\L80-9Cr\L80-13Cr
Thread Type STC\LTC\BTC\Premium Connection
Length Usually 2ft, 4ft, 6ft, 8ft, 10ft, 12ft.It can also be processed according to customer requirements.
Connection Type Double Pin,Pin*Box
Product Description
Size Outside Diameter(mm) Wall Thickness(mm) Length(FT)
4-1/2" 114.30 5.21-8.56 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
5" 127.00 5.59-12.7 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
5-1/2" 139.70 6.20-22.22 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
6-5/8" 168.28 7.32-12.06 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
7" 177.80 5.87-22.22 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
7-5/8" 193.68 7.62-19.05 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
7-3/4" 196.85 15.11 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
8-5/8" 219.08 6.71-14.15 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
9-5/8" 244.48 7.92-20.24 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
10-3/4" 273.05 7.09-20.24 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
11-3/4" 298.45 8.46-14.78 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
13-3/8" 339.72 8.38-13.06 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
16" 406.40 9.53-16.66 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
18-5/8" 473.08 11.05 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
20" 508.00 11.13-16.13 2ft, 4ft, 6ft, 8ft, 10ft, 12ft
Used
1.Adjust the length of the casing/tubing string to match the total length required.
2.Adjust the length of the subcomponent to the appropriate processing length.
Advantage
1. Our company has specialized in this line for many years;
2.We can produce the Casing pup joint as customers requirement;
3.Unique packing according to customer.
4. Strict quality control and competitive price;
5. Fast delivery;
6. 24hours email reply and ......url:http://www.dlpoileqpt.com |
