| Message: | Product Specification:
Model.No~ Cutting Force Dimension(L*W*H) Area of Work Table Main Motor Power Stroke Control Range Net Weight
TC-a30T/63" 30 T 2330*1320*1260mm 610*1600mm 2.2kw 50-160mm 1900kg
TC-B30T/63" 30 T 2330*1320*1260mm 610*1600mm 2.2kw 50-240mm 2000kg
TC-B30T/48" 30 T 1950*1320*1260mm 610*1220mm 2.2kw 50-240mm 1900kg
TC-a40T/63" 40 T 2330*1320*1260mm 610*1600mm 4kw 50-160mm 2500kg
TC-B40T/48" 40 T 1950*1320*1260mm 610*1220mm 4kw 50-240mm 2400kg
TC-a50T/63" 50 T 2330*1320*1260mm 610*1600mm 4kw 50-160mm 2900kg
TC-B50T/48" 50 T 1950*1320*1260mm 610*1220mm 4kw 50-240mm 2800kg
Features and Advantages:
1.Auto-balance structure of double-cylinder, four-column and selfbalance connecting rod, makes sure equal pressure in any working area.
2.Slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials. hydraulic cut eva foam / plastic / paper die cutting machine
3.Stroke adjustment device, makes stroke simple and correct to adjust with cutting die, cutting board and materials.
4.Central automatic lubrication system, increases machine durability, prolong the working time.
5.Suitable for single-layer or multi-layer sheet or roll materials.
6.More economical and 2 or 3 times improving producting capacity. die cutting machine
Application:

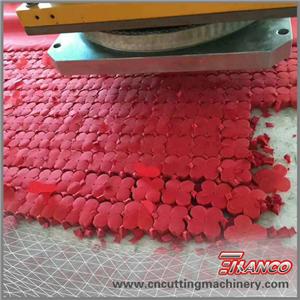

The die cutting machine used for die cutting jigsaw puzzle,eva foam, plastic, sandpaper, cardboard, shoes, suitcases, bags, cases, seat covers, facial mask, soft toys, cleaning sponges,artifical, Non-metallic materials.
It cut by mould/dies,you can design various shapes of molds. url:http://www.cncuttingmachinery.com |
