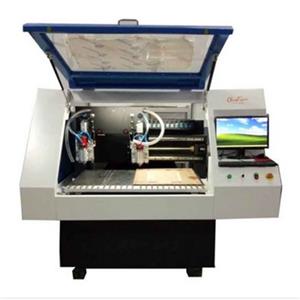

| Message: | PCB Drilling machine with 160000rmp NO. Specification CK-02DTwo Spindle machine 1 Spindle2 Two2 Spindle ModelKL18203 Spindle Speed1600004 Spindle power0.9KW5 Cooling system Water cooling6X.Y.Z XYZ Slideway Taiwan7X.Y.Z XYZ Screw rod Taiwan8X.Y XY shaft displacement speed 30m/min9Z Z shaft displacement speed 30m/min10 Repeat accuracy 0.015mm11Positioning accuracy0.015mm12 Platform size480*580mm13 Platform material "Jinan Qing" marble14 Drive system Panasonic Server15 Operate English and Chinese16 Chip suction method Auto Absorb17 Tool magazine capacity100PCS with robot 18 Drilling hole size0.2-6.35mm19 Blade length inspection Yes20 Broken blade inspection Yes21 Presser foot switch No22 Air pressure0.60.8Mpa23 Power220V/50Hz24 Machine size1350*1550*1500mm25 Machine weight2300KGPCB Drilling Machine Install About how to install,Website:http://www.yaode-pcb.com, we will provide you the video when you buy the machine, if need us to trainning your workers in your factory, pls kindly advice, we also can dispatch engineer to your company. But the buyer should provide the round air ticket and accommodation for the engineer. After-sales Service:Guarantee for one year or 1000 running hours from arrival date of destination port. During the gurantee period, we will provide the free easy-damaged spare parts for problems caused by our quality of production or raw material, except for the damageable spare parts of the machines caused by customers' incorrect man-made operation. After expiration, our company provides cost spare parts maintenance for machines. Contact US: |
