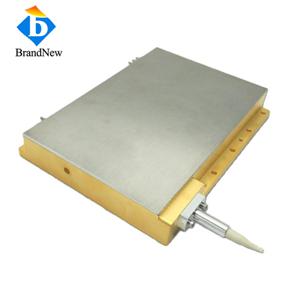

Message: | high power multi-emitter, fiber coupled pump laser modules
These 500W lasers are offered at 980 nm and at 915 nm
Key specifications
A threshold current specified at 1.1A and a nominal operating current specified at 25.0Amps.
Operating voltage for these laser diodes is typcially 62 Volts.
Data sheet
Item no. FC915DL500
Optical
Center Wavelength 915nm
Wavelength Tolerance ±10nm
Output Power 500W
Spectral Width FWHM 6nm
Slope Efficiency 18W/A
Fiber
Fiber Bend Radius >65mm
Fiber Core Diameter 220um
Fiber Numerical Aperture 0.22NA
Fiber Connector Bare End
Electrical
Operating Current Iop 25-28A
Threshold Current Ith 1.1A
Operating Voltage Vop 62~64V
Power Conversion Efficiency 43%
Thermal
Operating Temperature 15~35℃
Storage Temperature -20-55℃
Temperature Coefficient ~0.35nm/℃ url:http://www.brandnewdiode.com |
