| Message: | Triple wavelength:755nm 808nm 1064nm
Water cooled
Quality warranty: 18 months
Number of shots: 20 million
Data sheet:
Item No.: WCTWVS600

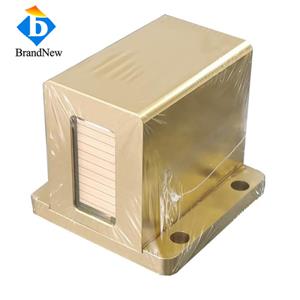

Item Name: 600W Triple Wavelength Water Cooled Vertical Stack Diode Laser
Optical
Center Wavelength 760±20nm
Output Power Per Bar 60W
Number of Bars 4
Center Wavelength 808±20nm
Output Power Per Bar 60W
Number of Bars 5
Center Wavelength 1064±20nm
Output Power Per Bar 60W
Number of Bars 1
Working Mode
QCW
Bar to Bar Spacing 2mm
Fast Axis Divergence(FWHM) 38Deg
Slow Axis Divergence(FWHM) 12Deg
Polarization Mode TE/TM
Slope Efficiency ≥1.0W/A
Pulse Width ≤400ms
Duty Cycle ≤40%
Electrical
Operating Current Iop 60A
Threshold Current Ith 13A
Operating Voltage Vop 19V
Power Conversion Efficiency 45%
Thermal
Operating Temperature 15-30℃
Storage Temperature 0-55℃
Others
Coolant Filtered Water
Flow Rate/Bar 4.0L/min
Max Inlet Pressure 0.4~0.5MPa
Water Temperature 23~27℃
Filtered Water Particles <20μm url:http://www.brandnewdiode.com |
