| Message: | 3D stone engraving machine is suitable for processing tombstones, railings, interior decoration and other industries. It has high processing accuracy and fast speed, can work stably for a long time, and has extremely high processing efficiency. Rotary stone engraving machine can carve Roman columns, column heads, column caps, Buddha statues, stone lions, reliefs, curved lines, lettering, milling grooves, railings, hollowing, etc. It can process artificial stone, marble, granite, sandstone, bluestone and other materials.

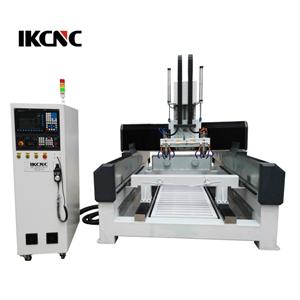

IKCNC stone engraving machine
Technical Parameters
Product number
3025
X/Y/Z Axis working area
3000*2500*300mm
Spindle motor powder
5.5kw Water cooling spindle(optional)
Max.Traveling speed
25m/min
Max.Working speed
12m/min
Spindle speed
6000-24000rpm
Tool shank diameter
Φ3.175/4/6/12mm
Drive motor
Servo motor
Table structure
Dustproof and waterproof design,all stainless steel sink,thickened engineering plastics.
Working voltage
AC380V 50/60Hz
Product details
IK Stone Engraving Machine
IKCNC stone engraving machine
Stone engraving machine
IK Stone CNC Router
IKCNC Stone CNC Router IK engraving machine
3D stone engraving machine adopts high-power water-cooled spindle, imported from Taiwan linear square 30 guide rail, servo motor, DSP handle control system, all three axes use dustproof and waterproof function, protect the slide rail slider, imported industrial grade ball screw and straight tooth The tool landing point is more precise. The machine is equipped with automatic oil filling and limit position. The high-power rotating shaft device expands the types of processing materials of the machine, increases the added value of processed products, and brings value to customers.
Scope of application
IK Stone CNC Router1
Stone engraving machine1
Advertising industry: engraving and cutting all kinds of signs, industrial license plates, department cards, craft cards,......url:http://www.ikcnc-en.com |
