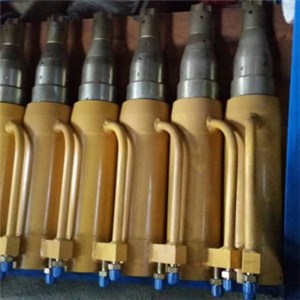

| Message: | Description of single wire stressing jack:
Single-wire stressing jacks are manufactured with 220KN and 300KN capacity and 200mm or 400mm stroke. Sigle wire stressing jacks are sutable for 12.7mm,15.2mm , and 15,7mm strands. These jacks generally find their application in commercial buildings.
Parameters of single wire stressing jack:
project
unit
Value
Nominal tension
KN
257
Nominal oil pressure
MPA
50
Tension piston area
M2
5.137*10
Return piston area
M2
1.335*10
Piercing hole diameter
MM
19
Trolley trip
MM
200
Dimensions
MM
180*568
Return oil pressure
MPA
Less than or equal to 25 url:http://www.ztmineequipment.com |
