| Message: | Product description

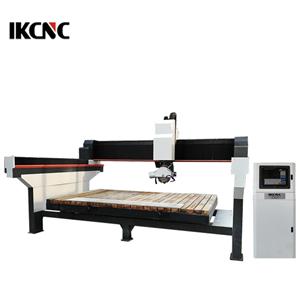

5 Axis CNC Bridge Saw is the new generation multi-function stone processing machine which is jointly developed by OMC and famous universities and research institutes.CNC control system synchronized with Italian technology system,pure touch screen operation which can be easily operated without knowing complicated CNC knowledge.The CNC 5 axis stone cutting machine can realize many advanced functions:straight and arc chamfering, cutting, drilling, milling,profiling,3D profiling and edge profiling,which are widely used by small processing factory,kitchen countertop and home decoration shops.The CNC 5 axis stone cutting machine is designed to realize X-Y-Z-A-B 5 axis linkage with more wider utilization.It adopts high quality servo motors and other electrical components,high precision linear guideway,compact structure and small area coverage.CNC 5axis G-code and DXF input can be selected.
6
Technical Parameters
Control method
CNC
Working voltage
380V/50HZ
R.P.M
2800r/min
Blade size
350mm
X-axis working stroke
3500mm
Y-axis working stroke
2000mm
Z-axis working stroke
400mm
A-axis working stroke
360°free rotation
X/Y-axis cutting speed
1-2000mm/min
Z-axis cutting speed
1-1000mm/min
A cutting speed
0-7r/min
Cutting thickness
100mm
Processing precision
0.2mm
Working table size
3500*2000mm
Overall size
4500*2750*2100mm
Product details
6
5AXIS-CNC-BRIDGE-SAW
CNC-Stone-cutting-machine
1) machine body:Heavy duty big square tube steel bed structure
2) function:ATC function
3) transmitting system:XY axis is rack and pinion,Z axis TBI Ball Screw
4) guide rail:XYZ all from Famous Taiwan Hiwin Line 30mm Square guide way
5) Spindle:ATC 5.5KW/7.5KW water cooled spindle
6) inverter:Fuling 7.5kw inverter
7) motor: Servo motors and drivers
8) Controller system: Customized controller system
9)Voltage:380v three phase
10)software:Artcam softw......url:http://www.ikcnc-en.com |
