| Message: | Product description

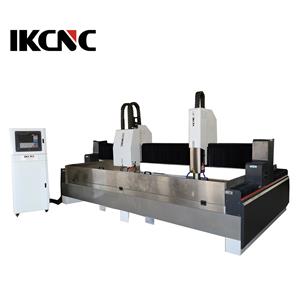

Wash basin countertop sink cutting polishing machine CNC center is widely used in quartz cabinet countertops processing industry, large stone panel engraving industry,craft processing and building material industry. Three axis adopts linear guide rail,running smooth,high precision. Applicable for products which need to be finished within 15 types of tools. Humanized control system shows advantages:continue engraving when broken point and adjust processing time. Whole steel structure machine body ensuring high stability.
3015-QMD
Technical parameter
Working area
3000*1500mm
Processing accuracy
0.05m
Repeat position accuracy
0.05mm
Tool magazine
18 pieces
Spindle speed
2000-12000rpm/min
Engraving commend
Code G.uoo.mmg.plt
Software operation environment
Windows98/2000/XP
Working voltage
AC380V/50HZ
Spindle power
11.0KW water-cooling
Control system
Weihong control system
Tool diameter
Φ3.175 Φ4 Φ6 Φ12.7
Working mode
Japan YASKAWA servo
Dimension
5800*2200*2000mm
Weight
3500KGS
Features and details of Wash basin countertop sink cutting polishing machine CNC center
Lathe Bed: Industrial design plate welding, 600 degree high temperature quenching processing
Machine Parts: Industrial aluminum casting structure
Working Table: Full aluminum
Drive Motor/System: Japan YASKAWA large power bus servo
Spindle: 11.0KW WATER-cooling spindle, 2000-12000rpm
Tool Magazine: BT 40 tool holder
Control System: Shanghai Weihong Special Control System
Linear Guide Rail: Taiwan HIWIN/PMI 30mm
Gear and Rack: Taiwan high precision
Double station and multiple suckers processing design
3015-QMD
3 (2)
IMG_20 (2)
stone engraving machine (2)
Applications
Quartz stone countertop machining center is widely used in the stone industry to Engrave and process tombstone and stone furnitures which can be also used in quartz cabinet countertops processin......url:http://www.ikcnc-en.com |
