4 spindle stone CNC router for margle engraving is widely used for stone, marble, granite, wood, soft metal, rubber, acrylic, plastic and so on. Machine bed is welded by the thick wall steel seamless tube and cast iron gantry, high temperature tempering treatment, high rigidity, bearing strength better. Dual motor drive for Y-axis, moving stably and powerful. Stainless steel water slot cooling system, ensuring the tools and materials cooling, getting the good engraving effect. Imported linear square guide rail, double row four row slider, high precision, long life time. Rack and pinion transmission for X Y-axis, ball screw transmission for Z axis, ensuring the machine fast speed and higher precision. 5.5KW/7.5kw water cooling spindle, more powerful and not easy to break tools. Dust proof and water proof system design, better to protect the machine driving part.

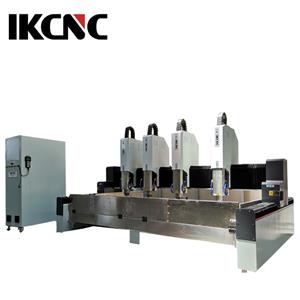

IK stone CNC Router
Technology parameter
Spindle power
5.5KW*4 water cooling spindle
Rotating speed
24000RPM
Re-positioning precision
±0.005mm
Transmission
X/Y axis with rack and pinion, Z axis with ball screw drive
Guide rail
Taiwan HIWIN square rail
Working table
T-slot working table
Travelling speed
25-30m/min
Working speed
15-20m/min
Driver motor
Stepper motor
Frequency inverter
Fuling inverter
Command language
G cord*.u00*.mmg*.plt*.HPGL
Interface
USB and Ethernet
Control system
DSP/Weihong control system
Optional
Rotary axis
Quantities of spindle
Features and details of Stone CNC Router
IKCNC-STONE-CNC-ROUTER-ENGRAVING
IK-STONE-ENGRAVING-CNC-ROUTER
ENGRAVING-MACHINE
STONE-CNC-
IKCNC
1325-STONE-ENGRAVING-MACHINE
1. Intelligent protection work table: Prevention of misoperation or software errors, and so on the surface may cause damage. Intelligent processing of cross-border protection: preventing processing format over the layout design of mechanical collision caused the phenomenon.
2. Fully in line with international sta......url:http://www.ikcnc-en.com |
