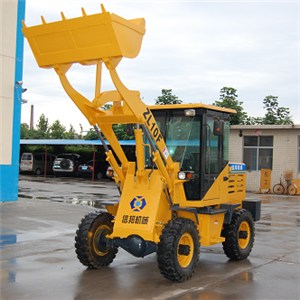

| Message: | Detailed Product Description1.with Changchai L28 engine2.four wheel drive3.mechanical transmission4.double shift hydrocylinder5.8.25-16 tyreHere is some technical parameters of ZL 10F4 series wheel loader1.0 Performance(1) Rated Load:800kg/1000kg (2)Overall Weight:2420kg(3)Rated Bucket Capacity:0.35m³/0.45m³ (4)Maximum Grade Ability:25°(5)Maximum Discharging Height:2500mm (6)Maximum Discharging Distance:860mm(7)Minimum Turning Radius:3900mm(8)Overall Dimension(L*B*H):4200mm*1560mm*2400mm2.0 Engine Details(1) Model: Changchai L28(2) Engine type:In-line arrangement,Website:http://www.kanghongmachinery.com, water-cooled, four-cycle diesel Engine(3) Rated Power:17kw(4) Rated Speed:2200 r/p.min (rpm) 3.0 Transmission System(1)Torque conventer(2)Gearbox Type:four-wheel power shift(3) GearShift:2 gears ahead ,2 gear astern(4)transmission system:mechanical drive4.0 Bucket(1) BucketCapacity: 0.35 m3/0.45m³(2) Bucket width: 1000mm/1300mm(3) Bucket type:Heavy-duty bolt on teeth(4) Rated Load: 800kg/1000kg5.0 Drive Axles(1)Axlebase:1950mm(2)Wheel Reduction Tyoe:Star Wheel Reduction6.0 Operating Specifications(1) Steering System: Articulated seel frame with hydraulic power steering(2) Min TurningRadius: 3900mm(3) Driving System:Four Wheel Driving7.0 Hydraulic System(1)Boom Lifting Time:4.5 s(2)One Cycle Hydraulic Time:9 s(3)Function of Leveling Automatically:yes8.0 Brake System(1) Service Brake:Four Wheel Hydraulic spread-shoed brake(2) Parking Brake:Hand operated9.0 Tyre(1) Model:8.25-16(2)Pressure:0.3Mpa-0.4Mpa 10.0 Driving Cab(1)Latest Product(2)With Audio System &electric fan(3)Comfortable and Adjustable Cabin Seat(4)Luxury Dashboard |
