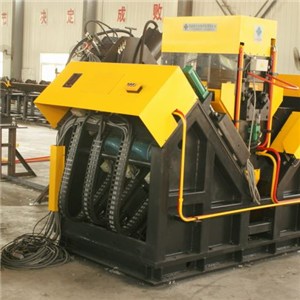

| Message: | JX2535F CNC angle drilling,marking production lineProducts UseThe machine is the special equipment used for angle steel marking, drilling and automatic production in the field of power and telecommunication.Products Feature1.Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.2.Key hydraulic, pneumatic and electric parts all imported.3.Easy programming and can directly use the program data made by lofting software.Computer with Chinese/English interface, easy operation, and can display the drawing of work piece.4.Loading, marking, drilling and unloading are all performed automatically.Only need to input size of work piece, diameter of holes, stadia and quantity of work piece when edit program, or use CAD/CAM direct conversion.5.The machining line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.6.With avoided shearing functions, so as to process fixed—length angles.7.Equipped with self-diagnosis failures function.Product ParameterModelJX2535FAngle size (mm)140x140x10—250x250x35Max. length of blank (m)12 by customer's requestMarking force (KN)1030Group of marking letters1Dimension of letters (mm)14x19x10Range of stadia (mm)50~220(stepless adjustment)No. of drill per side (piece)3Taper of drilling spindleBT40Max. rotation speed of spindle (mm)Ø26Drilling stroke (mm)140Max. rotation speed of spindle (r/min)6000Max. feeding speed (m/min)Ø40Max. Speed of slipway of drilling head (m/min)10Max feeding speed of drilling head(m/min)14CNC axis9Overall size (m)30x7.5x3Total power (KW)109.7Machine weight (T)About 30CALL FOR ACTION url:http://www.supertimecncmachines.com |
