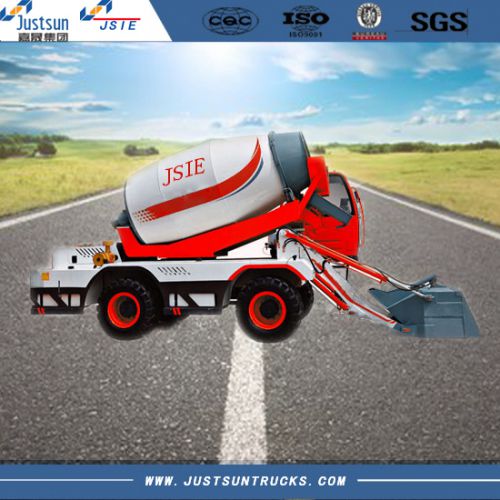

| Message: | Parameters of self loading concrete mixers
Overall dimension (LxWxH): 7500x2850x3600 mm
Wheelbase: 2450 mm
Curb weight: 8500 kg
Drive form: Torque converter
Maximum speed: 35 km/h
Maximum gradeability: 30
Minimum turning radius: 4000 mm
Minimum ground clearance: 330 mm
Engine
Model: Yuchai YCD4122G
Rated power: 85kw
Transmission case
Model: ZL-280 power shift transmission
Gear: 4 forward, 4 reverse
Conventional parameters
Equipment model: JBC40
Oil filling quantity
Fuel tank: 230 liters
The total capacity of the hydraulic system: 170 liters
Oil: 16 liters
Parameters of hydraulic system
Reduction gears: KY07-5-J
Pump: Parker pump
Motor: HA2FM56/ 61W-VTD527
Parameters of the water supply system
The capacity of the Water tank: 660 Litre
Modes of water supply: Time relay
Stirring and unloading
Geometric drum capacity: 6000L (6.0 m3)
Rotating speed of the drum: 13 rotations per minute
Outputs of concretes: 4.0 m3 per drum
