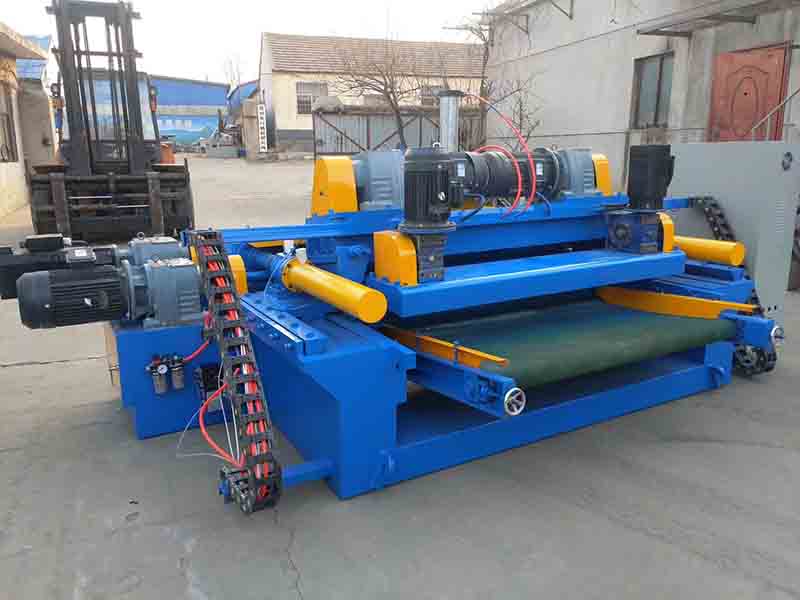

| Message: | new model core veneer peeling machine is the mechanical equipment needed by our plywood enterprises to produce and process plywood raw material veneer.Linyi Guoyu Machinery Co., Ltd. is constantly studying the problems in various kinds of veneer veneer cutting machines, and has carried out in-depth summary and research and development of a new veneer cutting machine which can effectively improve the quality of veneer production.
MORE PARAMTERS
PARAMTERS VALUE
PEELING KNIFE SIZE 1500×180x16MM
CUTTING KNIFE SIZE 1400x140x12.7MN
CORE DIAMETER OF REMAINING 25-32MM
DIAMETER OF DRIVING ROLLER 125/1500MM
DIAMETER OF PRESSURE ROLLER 125/1500MM
SINGLE ROLLERS MOTOR 2X5.5 KW
DOUBLE ROLLERS MOTOR 2x7.5 KW
FEEDING MOTOR 15 KWISERVO MOTOR)
THICKNESS ADJUSTABLE MOTOR 2×1.5KW( SERVO MOTOR
HYDRAULIC STATION 3 KW
CYLINDER OF HYDRAULIC BLADE ①63x50MMx5Pcs
TOTAL POWER 47KW(220V380V415V050Hz
SPEED 40M-80M/MINUTE ADJUSTABLE
WEIGHT 7000KGS
OVERALL DIMENSION 4400×2000x1900MM
The company has been in the leading position in the industry since it was listed on the market. The reason why it has a place in the fierce market competition is that the company has many years of rich experience in the production of high-speed rotary cutting machines. At the same time, the company is equipped with a production team specialized in research and development. |
