Especially for PCD/PCBN tools’rough, medium, semi-finish and finish grinding.
Advantages:
1.Precision control of geometric tolerance
2.Extremely long lifetime through high adhesion strength of the diamond grain
3.Good self-sharpening
4.Superior insert edge quality
5.High cutting ability with profile retention
Type D(mm) T(mm) H(mm) W(mm) X(mm)

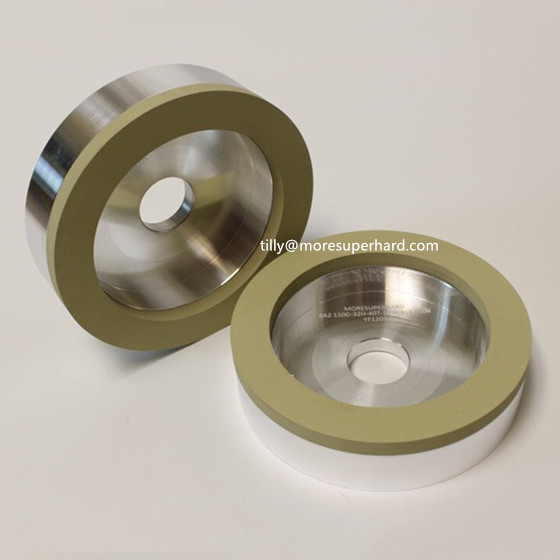

6A2 100 40 32,40 3, 5 , 10 , 20 10
125 40 32,40 3,5,10 10
150 40 32,40 3, 5 , 10,15,20 10
Grit: 325/400, W40(500#), W28(600#), W20(800#), W10(1500#), W7(2000),W5(3000#), W3.5(4000#),6000#...
Suitable Grinding Machines:COBORN,EWAG, FARMAN,MYTECH...
GRAIN SIZE SELECTION:
Grain Size
Machining Type
Application
W40(400-500#,D35)W28(600-700#,D20)
rough
Regrinding a blade edge profile and sharpening of much worn inserts
W20(800-1000#,D20)
universal
Standard grain size also can get a high sharpening efficiency, good quality surfaces
W10 (1500#, D15A)
W7(2000#,D15B)
finish
Finishing grinding - getting a very good quality of machined surfaces
W5 (3000#, D7)
W3.5 (4000#,D3)
super finish
Super finish grinding - getting a brilliant quality of machined surfaces |
