| Message: | Introduction of 4 ports Serial Ethernet Converter

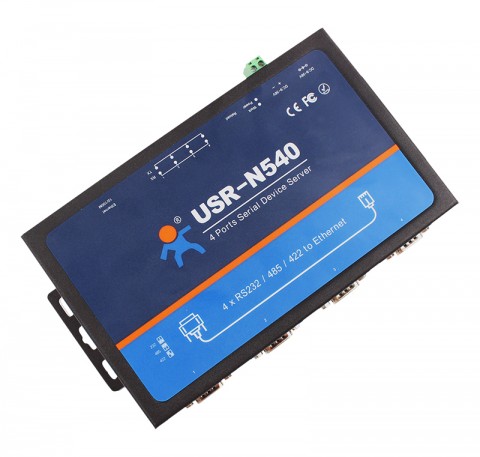

USR-N540, 4 serial port Ethernet converter which can realize transparent transmission between TCP/UDP data package and RS232/RS485/RS422 interface.
N540 Update
Character of USR-N540 Serial Ethernet Converter
Industrial Solution TI Cortex M4 Solution, -40~85C
Web Server Web socket/ Web to Serial
Modbus Gateway Modbus RTU to Modbus TCP / Modbus Pollinig
Flow Control CTS/RTS, XON/XOFF
Protection Watchdog circuit, never cash
ESD 8KV
Anti-surge
Network Network Printing
2 network links, each serial support sending data to two servers
Feature of 4 ports Serial Ethernet Converter
TI Cortex-M4 kernel,industrial working temperature range and TCPIP protocol stack.
Auto-MDI/MDIX,RJ45 port with 10/100Mbps
TCP Server,TCP Client,UDP Client,UDP Server and HTTPD Client work mode
4 ports can work independently at the same time
Can distinguish which serial port connects to the device via port number
Support virtual serial port and provide corresponding software USR-VCOM
Serial baud rate from 600bps to 230.4K bps
DNS and DHCP supported
Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
Built-in webpage;also can customize webpage for users
The global unique MAC address bought from IEEE (begin with D8-B0-4C);user can define MAC address
Support upgrade firmware via network
Support keepalive,rapidly detect dead links
Support account and password,can be used to page login and network settings
Support one channel Websocket,realize bidirectional transparent transmission between webpage and serial 0
Support Modbus RTU to Modbus TCP
Support UDP broadcast function
Each serial can work as rs232,rs485 or rs422; Default port is RS232 BD9 male port
Four channel serial communication indicator: TX/RX, CTS/RTS, XON/XOFF
Support DC adapter and 5.08-2 terminal power supply
Reload button,one key to restore default settings
RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation |
