| Message: | Introduction of RS232 WiFi Server

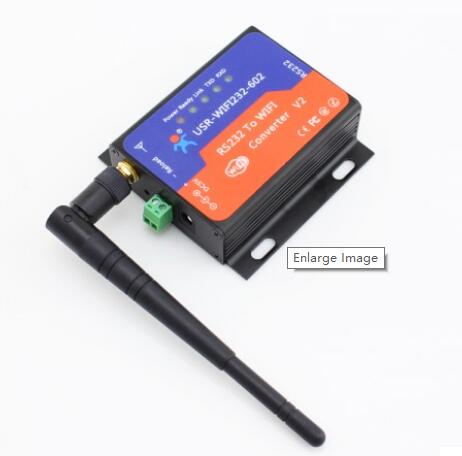

USR-WIFI232-602-V2 is a serial wifi converter,used for data transparent transmission. It can connect with serial device for data transmission. And it can send data from rs232 to WIFI in TCP client,TCP server,UDP client and UDP server mode.
Features of RS232 WiFi Server
Support 802.11b/g/n wireless standard
Support TCP/IP/UDP network protocol
Support RS232 interface with RTS/CTS flow control
Support work as STA/AP/AP+STA mode
Support router and bridge mode
External antenna
Support transparent transmission mode
Provide AT+ instruction set for configuration
Provide friendly web configuration page
Support heartbeat signal and wifi connection indication
Support UART auto-frame function
Max transmission distance: 280 meters (open horizon, 3dbi antenna)
Support DC adapter and terminal power supply
Work mode: TCP Server, TCP Client, UDP Client, UDP Server
Indicator light: Power, Ready, Link, TXD, RXD
Serial port baud rate from 300 bps to 460800 bps
Set parameters through webpage
Reload key to restore factory settings
Application field of RS232 WiFi Server
WiFi remote control and monitoring, TCP/IP and WiFi coprocessor
WiFi remote control toy such as aircraft and cars
WiFi Internet radio, camera, digital photo frame
Medical instrument, data acquisition, handheld device
WiFi fatness testing machine, smart card terminal, Smart Home
Instrument, equipment parameter monitoring, wireless POS machine
Modern agriculture, military field and other wireless related secondary development applications |
