| Message: | Introduction of Serial WIFI Converter

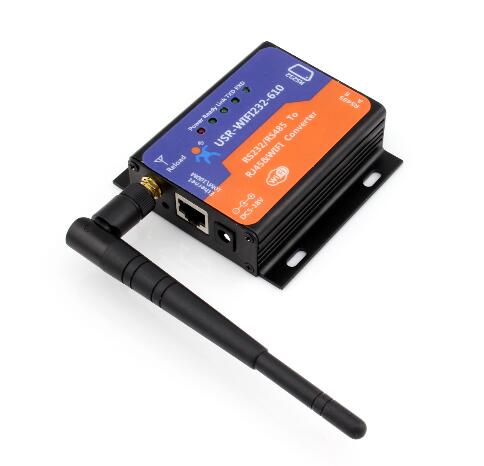

USR-WIFI232-610-V2 is a wireless serial WIFI converter, which is used for project of RS232/RS485 serial equipment to WIFI or Ethernet networking. It can be controlled by mobile phone or laptops, also can be connected to the remote server.
Features of Serial WIFI Converter
Hardware flow control (RTS/CTS) RS232 interface, male mouth(needle) consistent with computer pin definition
DC5~18V wide voltage input, can provide 2A current MP1482DS DCDC power supply chip, keep system reliability.
RS232 RS485 automatic switching
RJ45 network connection, support wired Ethernet transmission
Reload button, do not worry incorrect settings (in working status, press the button 3-5s then it load to default settings and automatic restart)
Rich status indicator light: Power Ready Link RXD TXD
Support IEEE802.11b/g/n wireless standards
Support TCP/IP/UDP network protocols
Support RS232 RS384 data interface
Support work as STA/AP/AP+STA mode
Support router/bridge Mode networking
Support external antenna
Support transparent transmission mode
Support AT+ instruction set for configuration
Support friendly web configuration page
Support palmodic signal
Single 5-18V power supply
Small size: 84 x 84x25mm
FCC/CE/RoHS/TELEC certificated |
